Heavy Duty Shop Air Compressor Industrial Series - Model No. I10312HC2-S

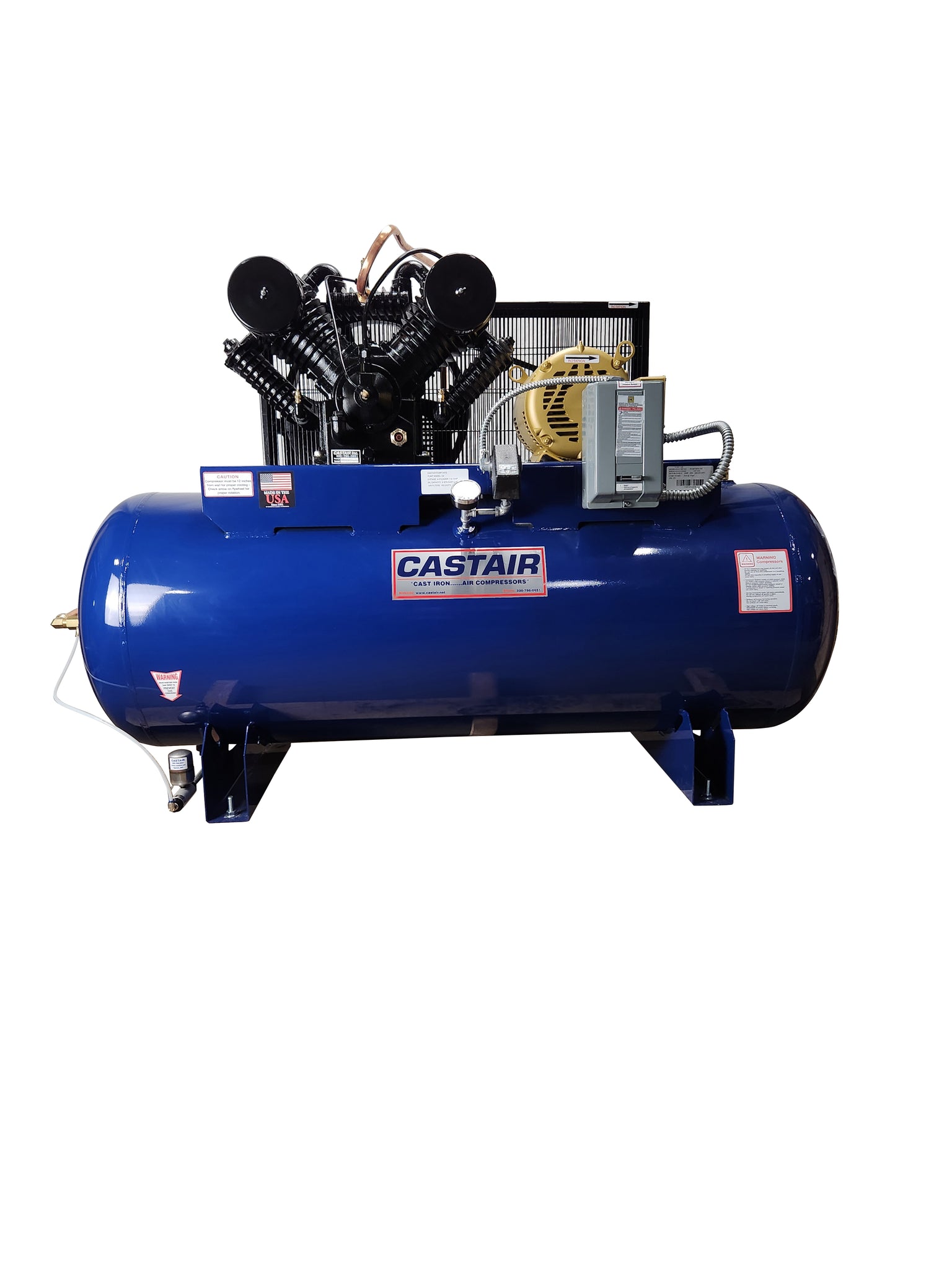

Castair I10312HC2-S — 10 HP Three-Phase Industrial Air Compressor, 120-Gallon Horizontal Tank, C2 Pump with Mounted Starter

The Castair I10312HC2-S is a 10 HP three-phase industrial air compressor with a 120-gallon horizontal ASME tank and factory-mounted magnetic motor starter. The cast iron C2 two-stage pump runs at 758 RPM, producing 45.0 CFM at 0 PSI and 35.0 CFM at 175 PSI. At 860 lbs and 69 x 24 x 50 inches, it is 15 lbs lighter than the single-phase equivalent (I10112HC2-S at 875 lbs) — three-phase motors are physically smaller for the same output.

If your facility has three-phase power, there is no practical reason to run a single-phase motor on a 10 HP compressor. Three-phase motors run cooler under load, start with less inrush current, require less derating at high ambient temperatures, and outlast single-phase motors in hard continuous service. The I10312HC2-S has the same output as the single-phase equivalent but in a configuration better suited for industrial continuous duty.

Cast Iron Pump Engineering — Why This Matters for Shop Longevity

Every Castair Industrial Series compressor is built around their oversized cast iron pump. Here is what separates these from lighter-duty machines:

• All cast iron construction — cylinder heads, crankcase, and cylinders are cast iron throughout. Cast iron manages heat better than aluminum and wears far more slowly under continuous load.
• Tapered roller bearings at both ends of the crankshaft — not ball bearings. Tapered rollers handle both radial and thrust loads simultaneously, which is exactly what a reciprocating pump crankshaft sees in operation.
• Precision steel connecting rods with automotive-type insert bearings — at both the crankshaft journal and the wrist pin. These are the same bearing design used in automotive engines. They are replaceable when worn — not a throwaway assembly.
• Disc and spring valves — simpler to service than reed valves, more efficient at high discharge pressures, and more reliable over years of cycling.
• 4-ring pistons — two extra rings versus typical 2-ring piston designs. Better compression sealing, significantly less oil carry-over into the air stream.
• Centrifugal unloader — the pump starts unloaded on every cycle without exception. This reduces motor starting current, reduces wear on the motor and belts, and eliminates the hard-start problem common in compressors that attempt to restart against pressure.

Three-Phase Motor Advantages

• Lower starting current — three-phase motors spread starting load across three legs. Single-phase motors draw substantially higher inrush current on startup, stressing the electrical system and motor windings.
• Runs cooler under load — heat is the primary motor failure mechanism. A three-phase motor at 10 HP runs cooler than a single-phase motor at the same load.
• More compact motor — same 10 HP in a physically smaller frame than single-phase equivalent
• Better for continuous duty — shops running the compressor all day should use three-phase if available
• Lighter unit — 860 lbs versus 875 lbs for the single-phase version

Tank, Motor, and Controls

• ASME-coded steel tank — powder-coated for corrosion resistance. ASME certification means the tank was designed and tested to a recognized pressure vessel standard, not just stamped with a number.
• ASME safety valve — factory-installed.
• Metal belt guard, totally enclosed — not a plastic cover.
• Copper discharge and unloader tubing or stainless-steel braided flex line — not plastic hose or rubber.
• Heavy-duty 1,725 RPM industrial motor with a minimum 15% service factor. This means the motor can sustain loads above its nameplate rating without tripping. In a shop where the compressor runs all day, the service factor is not a marketing number — it is the difference between a motor that lasts a decade and one that burns up in two years.

When to Choose Three-Phase vs. Single-Phase

• Always choose three-phase if your facility already has three-phase power — no cost premium for better performance
• Choose single-phase (I10112HC2-S) only if three-phase is not available and you cannot justify the cost of bringing it in
• Don''t install a phase converter to run a single-phase compressor — if you''re adding a phase converter anyway, run the three-phase motor directly

Who Needs This Unit

Shops and facilities with three-phase 230V or 460V service running 3-5 air tools simultaneously under continuous or near-continuous demand. Auto shops, body shops, manufacturing, fleet maintenance — wherever three-phase power is available and reliable compressed air is non-negotiable.

What's in the Box

• Castair I10312HC2-S compressor assembly (pump, motor, tank, factory-assembled)
• Factory-mounted and wired magnetic motor starter
• ASME safety valve (installed)
• Pressure switch (installed)
• Metal belt guard (installed)
• Copper discharge and unloader tubing or stainless-steel braided flex line (installed)
• Operator documentation

Factory-installed options available on this unit include: low oil shutdown control (#6304M), hour meter (#HRM75M for 230V or #HRM460M for 460V), air-operated auto drain (#ADVSM), electronic auto drain (#SDV03M), dual controls (#DC2 for C2 pumps), intake noise silencer (#SA100x2M for C2/C3), belt tensioner (#215DM for 10 HP), time delay (#TD100M for 230V), vibration isolation pads (#VP1004), beltguard aftercooler (#BGAC1M — 35 CFM, appropriate for 10 HP), and Right from the Start Kit (#RFS001 for C1/C2). Ordering all asterisk-marked options qualifies for 10% discount on options. Ask us about pre-configured option packages.

Technical Specifications

• Model: I10312HC2-S
• Horsepower: 10 HP
• Phase: 3-phase (three-phase)
• Tank capacity: 120 gallons
• Tank orientation: Horizontal (channel base)
• Pump type: C2 (two-stage cast iron)
• Pump RPM: 758
• CFM at 0 PSI: 45.0
• CFM at 175 PSI: 35.0
• Max working pressure: 175 PSI
• Motor speed: 1,725 RPM
• Motor service factor: 15% minimum
• Dimensions (L x W x H): 69 x 24 x 50 inches
• Weight: 860 lbs
• Tank certification: ASME
• Starter: Factory-mounted magnetic motor starter (included)
• Manufacturer: Castair (Cast Air Inc., Spicer, MN)

Available Configurations — Cast Air Industrial 10 HP Three-Phase Lineup

Single-phase versions (I101-series) are available if your facility only has single-phase 230V service.
