Heavy Duty Shop Air Compressor Industrial Series - Model No. I10112HC2-S

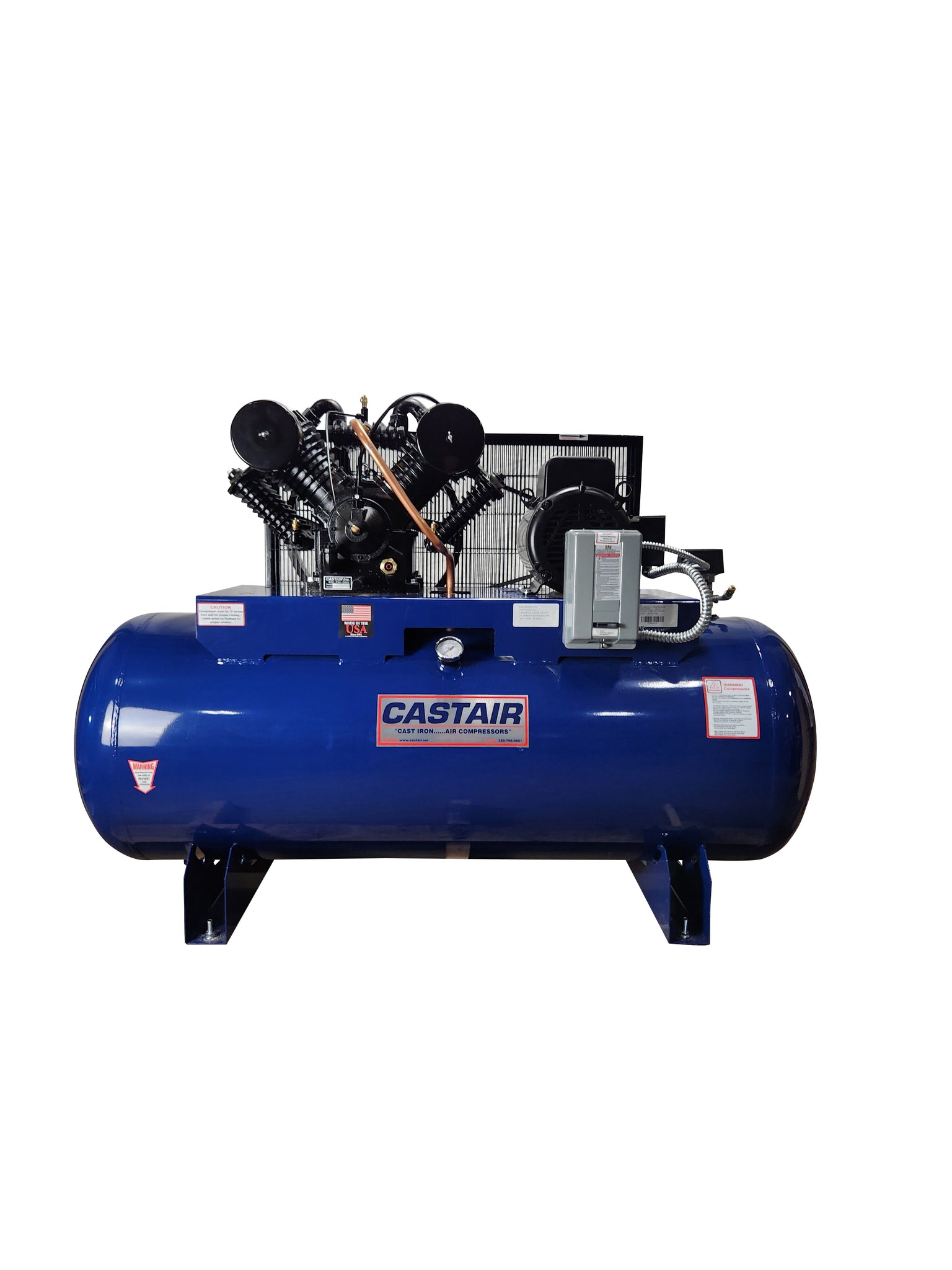

Castair I10112HC2-S — 10 HP Single-Phase Industrial Air Compressor, 120-Gallon Horizontal Tank, C2 Pump with Mounted Starter

The Castair I10112HC2-S is a 10 HP, single-phase industrial air compressor for shops that need reliable output all day without the complexity of three-phase power. This unit pairs Castair's cast iron C2 two-stage pump — running at 758 RPM — with a 120-gallon horizontal ASME-coded tank and a factory-mounted magnetic motor starter. Output is 45.0 CFM at 0 PSI and 35.0 CFM at 175 PSI. The horizontal tank configuration works well in shops where ceiling height is limited or where a low-profile unit tucks under a workbench or along a wall.

The '-S' suffix means the magnetic starter is factory-mounted and wired. You are not buying a motor and hoping someone figures out the starter circuit — it ships ready to connect to your electrical service. For any shop owner who has dealt with burned-up motors from running without proper overload protection, this is significant.

Cast Iron Pump Engineering — Why This Matters for Shop Longevity

Every Castair Industrial Series compressor is built around their oversized cast iron pump. Here is what separates these from lighter-duty machines:

• All cast iron construction — cylinder heads, crankcase, and cylinders are cast iron throughout. Cast iron manages heat better than aluminum and wears far more slowly under continuous load.
• Tapered roller bearings at both ends of the crankshaft — not ball bearings. Tapered rollers handle both radial and thrust loads simultaneously, which is exactly what a reciprocating pump crankshaft sees in operation.
• Precision steel connecting rods with automotive-type insert bearings — at both the crankshaft journal and the wrist pin. These are the same bearing design used in automotive engines. They are replaceable when worn — not a throwaway assembly.
• Disc and spring valves — simpler to service than reed valves, more efficient at high discharge pressures, and more reliable over years of cycling.
• 4-ring pistons — two extra rings versus typical 2-ring piston designs. Better compression sealing, significantly less oil carry-over into the air stream.
• Centrifugal unloader — the pump starts unloaded on every cycle without exception. This reduces motor starting current, reduces wear on the motor and belts, and eliminates the hard-start problem common in compressors that attempt to restart against pressure.

Tank, Motor, and Controls

• ASME-coded steel tank — powder-coated for corrosion resistance. ASME certification means the tank was designed and tested to a recognized pressure vessel standard, not just stamped with a number.
• ASME safety valve — factory-installed.
• Metal belt guard, totally enclosed — not a plastic cover.
• Copper discharge and unloader tubing or stainless-steel braided flex line — not plastic hose or rubber.
• Heavy-duty 1,725 RPM industrial motor with a minimum 15% service factor. This means the motor can sustain loads above its nameplate rating without tripping. In a shop where the compressor runs all day, the service factor is not a marketing number — it is the difference between a motor that lasts a decade and one that burns up in two years.

Why the Horizontal Tank

• Lower profile — fits under most overhead obstacles
• 69 inches long by 24 inches wide by 50 inches tall — fits against a wall without requiring vertical clearance
• Channel base mount — more stable on an uneven shop floor than leg-mount verticals
• Easier to drain condensate from the lowest point of the tank

Who Needs This Unit

This compressor fits a shop running 3 to 5 air tools simultaneously — impact wrenches, ratchets, blow guns, tire changers, air-operated lifts. The 120-gallon tank keeps recovery times reasonable under continuous demand. Single-phase 230V power means no phase converter required — connect directly to your existing electrical service.

When to Step Up or Step Down

• Step down to I1018HC2-S (80-gallon horizontal): Identical pump and output, smaller tank. Cycles more frequently under heavy load. Right choice for lighter-demand shops watching cost.
• Stay with I10112HC2-S: 120 gallons gives enough stored air for a busy 2-3 bay shop without constant short-cycling.
• Step up to I10112HC3-S (C3 pump, same tank): The C3 runs at 570 RPM — slower, quieter, longer service life. 165 lbs heavier at 1,040 lbs. Right choice if you plan to keep this machine for 20+ years.
• Step up to three-phase (I10312HC2-S): Identical specs but three-phase motor runs cooler and lasts longer under continuous service. Use three-phase if your facility has it.

What's in the Box

• Castair I10112HC2-S compressor assembly (pump, motor, tank, all factory-assembled and tested)
• Factory-mounted and wired magnetic motor starter
• ASME safety valve (installed)
• Pressure switch (installed)
• Metal belt guard (installed)
• Copper discharge and unloader tubing or stainless-steel braided flex line (installed)
• Operator documentation

Factory-installed options available on this unit include: low oil shutdown control (#6304M), hour meter (#HRM75M for 230V or #HRM460M for 460V), air-operated auto drain (#ADVSM), electronic auto drain (#SDV03M), dual controls (#DC2 for C2 pumps), intake noise silencer (#SA100x2M for C2/C3), belt tensioner (#215DM for 10 HP), time delay (#TD100M for 230V), vibration isolation pads (#VP1004), beltguard aftercooler (#BGAC1M — 35 CFM, appropriate for 10 HP), and Right from the Start Kit (#RFS001 for C1/C2). Ordering all asterisk-marked options qualifies for 10% discount on options. Ask us about pre-configured option packages.

Technical Specifications

• Model: I10112HC2-S
• Horsepower: 10 HP
• Phase: 1-phase (single-phase)
• Tank capacity: 120 gallons
• Tank orientation: Horizontal (channel base)
• Pump type: C2 (two-stage cast iron)
• Pump RPM: 758
• CFM at 0 PSI: 45.0
• CFM at 175 PSI: 35.0
• Max working pressure: 175 PSI
• Motor speed: 1,725 RPM
• Motor service factor: 15% minimum
• Dimensions (L x W x H): 69 x 24 x 50 inches
• Weight: 875 lbs
• Tank certification: ASME
• Starter: Factory-mounted magnetic motor starter (included)
• Manufacturer: Castair (Cast Air Inc., Spicer, MN)

Available Configurations — Cast Air Industrial 10 HP Single-Phase Lineup

Three-phase versions (I10312-series) are available with identical output specs. If your facility has three-phase power, use it — three-phase motors run cooler, start easier, and last longer under continuous load.
