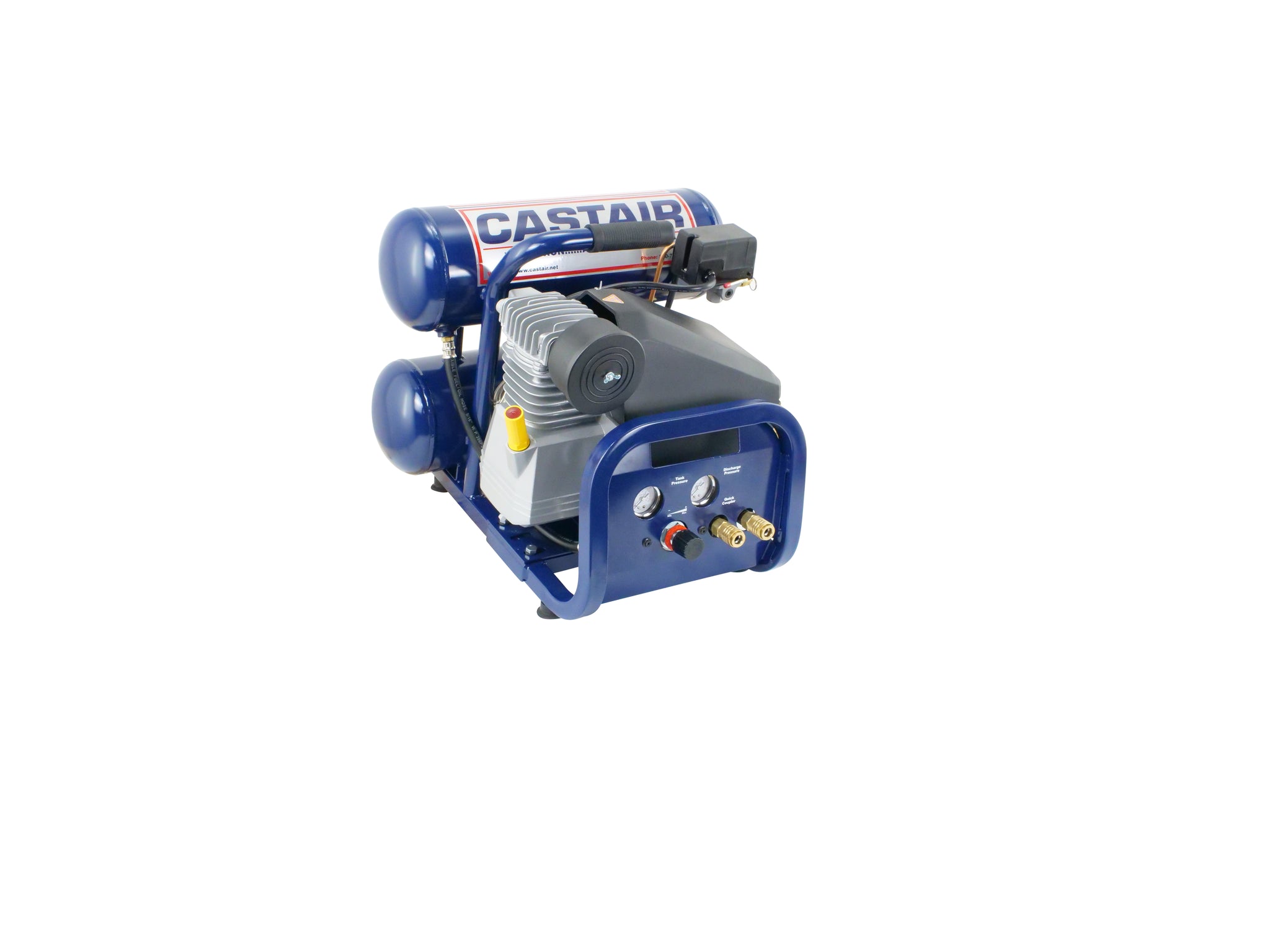

The Castair D1514T20 is a 1.5 HP single-stage direct-drive oil-lubricated air compressor on a 4-gallon twin stack portable tank, running at 1,725 RPM on 115V single-phase power (12 amps). It delivers 9.9 CFM free air and 4.6 CFM at 100 PSI. Shipped weight is 75 lbs. This is a contractor-grade portable unit for job site work — nail guns, brad nailers, staplers, trim work, and light-duty air tools that do not need the sustained CFM of a stationary shop compressor.
Who Needs the D1514T20
The D1514T20 is built for contractors and finish carpenters who need a portable compressor they can move from job to job. It runs on a standard 115V household outlet, weighs 75 lbs shipped, and the twin stack configuration keeps the footprint compact while providing enough tank volume for nail gun work without constant cycling. It is not a production shop compressor — it is a job site tool.
The cast iron sleeve pump gives the D1514T20 a service life that direct-drive oil-less units cannot match. Cast Iron cylinder walls wear at a fraction of the rate of aluminum, and an oil-lubricated pump runs cooler and quieter than an oil-less unit of the same capacity. The Castair spec sheet states oil-lubricated units last up to 10 times longer than oil-less compressors — relevant when you are running this machine daily on job sites.
Key Features
- Cast Iron sleeve pump for long service life — up to 10x longer than oil-less units per Castair
- Fan-cooled thermal overload protected motor — shuts down before damage occurs from overheating
- Filter/silencers provide clean air intake and quiet operation
- Heavy duty pressure switch with on/off control and copper bleeder tube
- Finned copper discharge tube for strength and increased heat dissipation
- Two-piece connecting rod, independent wrist pin, and 3-ring piston — real piston construction, not a simplified design
- Regulator with gauge mounted and quick coupler included
- ASME safety valve installed (note: 8-gallon single tank units are non-ASME; this twin stack unit specification should be confirmed)
Performance Specifications
- HP: 1.5
- Voltage: 115V
- Phase/Amps: Single-phase / 12 amps
- CFM at 0 PSI: 9.9
- CFM at 100 PSI: 4.6
- Max Pressure: 125 PSI
- Pump RPM: 1,725
- Tank: 4-gallon twin stack
- Drive: Direct drive
- Lubrication: Oil-lubricated
Physical Specifications
- Dimensions (LxWxH): 19" x 19" x 19"
- Shipped Weight: 75 lbs
- Stage: Single-stage
D1514T20 vs. D1518P20 — Which Contractor Model
Castair offers two direct-drive 1.5 HP contractor models:
- D1518P20 — 1.5 HP, 8-gallon portable tank, 24" x 14" x 25", 75 lbs shipped. More tank volume, taller profile, same pump and performance specs.
- D1514T20 — 1.5 HP, 4-gallon twin stack, 19" x 19" x 19", 75 lbs shipped. More compact footprint, lower profile — fits under workbenches or in tight job site spaces (this unit).
Both weigh 75 lbs and have the same HP, CFM output, and pump specs. The choice comes down to tank volume vs. footprint. For finish carpentry and trim work where a nail gun does not draw continuously, the D1514T20's 4-gallon tank is generally sufficient and the compact twin stack profile is easier to position on a job site.
When Does a Contractor Need This vs. Stepping Up
The D1514T20 handles: Pneumatic nail guns (finish, brad, framing), staplers, blow guns, and light inflation. It is appropriate for one operator running a single nailer with normal intermittent use.
Step up to an 8-gallon unit if you are running two nailers simultaneously or a larger framing nailer with rapid-fire nailing sequences that drain the tank faster than the pump can recover.
Step up to a belt-drive unit if you need sustained CFM for painting, sandblasting, or running air tools for extended periods — the direct-drive 1.5 HP at 1,725 RPM is not designed for that duty cycle.
The D1514T20 is not the right tool for air sanders, DA polishers, spray painting, or any tool requiring more than 4-5 CFM sustained.
Technical Specifications Summary
- Model: D1514T20
- Manufacturer: Castair (Cast Air, Inc.) — Spicer, Minnesota
- Series: Contractor
- HP: 1.5
- Voltage: 115V single-phase / 12 amps
- Tank: 4-gallon twin stack portable
- CFM @ 0 PSI: 9.9
- CFM @ 100 PSI: 4.6
- Max PSI: 125
- Pump RPM: 1,725
- Drive: Direct drive
- Lubrication: Oil-lubricated, cast iron sleeve
- Dimensions (LxWxH): 19" x 19" x 19"
- Shipped Weight: 75 lbs
- Regulator/Gauge: Mounted with quick coupler
- Safety Valve: Installed
