The Castair RFS001D is the Right From The Start Kit for 10 HP duplex and tandem compressor models. This bundled maintenance kit contains the essential startup supplies and service components that every new duplex or tandem compressor needs before it goes into service — break-in oil, vibration isolation pads, the correct ball valve for tank shutoff, a stainless steel flex hose for vibration-isolated plumbing, and replacement air filter elements. Buying these components together as a kit saves approximately 10% versus purchasing each item separately, and ensures you have everything needed for a proper installation without hunting down parts from multiple suppliers.
Castair's "Right From The Start" philosophy is straightforward: a new compressor that is properly installed, started with the correct break-in oil, and mounted on vibration pads will outlast and outperform one that is not. The first-time cost of this kit is small relative to the cost of the compressor. The cost of skipping it — premature pump wear, vibration-induced plumbing failures, voided warranty — is much larger. This kit is the version for 10 HP duplex and tandem models.

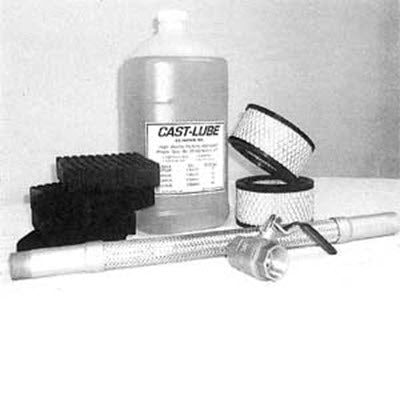

What's in the Kit
- CAST-LUBE GA30W — 2 gallons of 30-weight air compressor oil: Castair's premium break-in oil. New compressor pumps require the break-in oil to be changed within the first eight hours of operation. Standard engine oil is not appropriate — it can cause carbon buildup on valves and pistons and damage internal components. Using CAST-LUBE protects your warranty. Duplex models get two gallons (one per compressor).
- VP100 Vibration Pads — 4 pads (4"×4"×1" rubber): Mount the compressor on these pads. Rubber isolation pads absorb vibration that would otherwise transmit into the floor, wall-mounted piping, and the flex hose connections. They reduce noise and prevent vibration-induced pipe fatigue at connection points.
- BV75 Ball Valve (3/4"): Full-flow brass/stainless ball valve for tank shutoff. The 3/4" size is appropriate for 10 HP duplex installations. Install at the tank outlet to allow the air system to be isolated for service without draining the tank.
- VA075 Flex Hose (3/4"): Vibration-absorbing stainless steel flex hose for the connection between the compressor tank outlet and your shop piping. This is not optional on a duplex installation — rigid pipe connections from a vibrating compressor will eventually crack at joints or fittings. The flex hose absorbs the vibration and protects the pipe connection.
- 16D Air Filter Elements — 4 elements: Replacement filter elements for the intake air filter. Clean intake filters are critical to pump longevity — a clogged filter forces the pump to work harder and can allow contaminants to reach the cylinder walls and valves. Keep spares on hand and replace on schedule.
Why Each Item Matters
Break-In Oil
Air compressor pumps are different from engines — they run at higher temperatures, cycle more frequently, and require oil with different additive packages. CAST-LUBE GA30W is formulated for air compressor service. The first eight hours of operation are the highest-wear period for a new pump — this is when ring seating, bearing surfaces, and valve seats are conditioning to working tolerances. Using the correct oil during break-in directly affects pump longevity.
Vibration Pads
A duplex compressor running at full load produces significant vibration. Without isolation pads, that vibration transmits into concrete floors and through rigid pipe connections to the shop air distribution system. The result over time is loosened fittings, cracked welds, and pipe joint failures. Vibration pads cost a few dollars. A pipe joint failure in a wall or ceiling can be a significant repair.
Flex Hose
Rigid pipe directly connected to a vibrating compressor is a failure waiting to happen. The flex hose provides the necessary movement isolation between the compressor and the fixed shop piping. Stainless steel construction handles shop air pressures and temperatures. The 3/4" size is correct for 10 HP duplex installations.
Compatibility
- RFS001D: For 10 HP duplex and tandem Castair compressor models
- Not for single compressor units: Single compressor units use the RFS001 kit (A8, C1, C2 models)
- Higher HP duplex models: 15 & 20 HP duplex uses RFS002D; 25 & 30 HP duplex uses RFS003D
Kit Contents Summary
- GA30W CAST-LUBE compressor oil (1 gallon) — Qty: 2
- VP100 vibration pads 4"×4"×1" — Qty: 4
- BV75 ball valve 3/4" — Qty: 1
- VA075 flex hose 3/4" — Qty: 1
- 16D air filter elements — Qty: 4
Available Right From The Start Kit Configurations
- RFS001 (A8, C1, C2) — Single-compressor industrial/commercial: 1 qt oil, 4 VP100 pads, BV75 or BV100, VA075 or VA100, 2 filter elements. Priced at $162.95.
- RFS001D — 10 HP Duplex & Tandem (this kit): 2 gal oil, 4 VP100 pads, BV75, VA075, 4 filter elements. Priced at $193.96.
- RFS002D — 15 & 20 HP Duplex: 2 gal oil, 4 VP100 pads, BV100, VA100, 4 filter elements.
- RFS003D — 25 & 30 HP Duplex: 4 gal oil, 4 VP100 pads, BV114, VA125, 4 filter elements.
Technical Specifications
- Part Number: RFS001D
- Application: 10 HP duplex and tandem Castair compressor models
- Oil included: GA30W CAST-LUBE 30-weight air compressor oil, 2 gallons
- Vibration pads: VP100, 4"×4"×1" rubber, quantity 4
- Ball valve: BV75 3/4" full-flow brass/stainless, quantity 1
- Flex hose: VA075 3/4" stainless steel vibration-absorbing, quantity 1
- Filter elements: 16D, quantity 4
- Kit savings vs. individual items: Approximately 10%
- Price: $193.96
Why Buy From Air Compressor Factory Direct?
We specialize in Castair compressors and accessories and have since 2016. The RFS001D is a straightforward purchase — if you have a 10 HP duplex Castair compressor going into service, this is the kit you need. Free shipping on qualifying orders, free pre-sale technical support confirming kit fit for your specific model, and full Castair manufacturer warranty on the compressor. Do not start your new compressor without the correct break-in oil — that first oil change matters.
