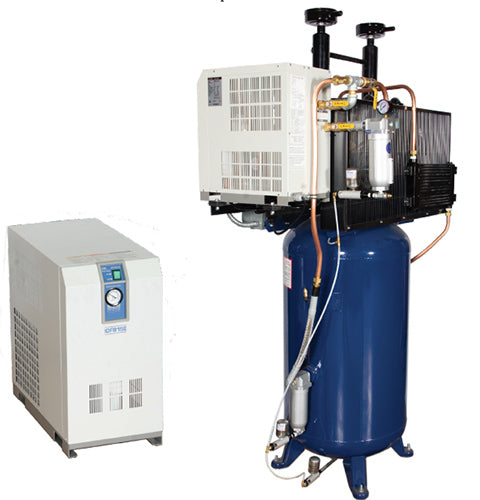

The Castair RD71-15K is a refrigerated compressed air dryer rated at 71 CFM at a 37°F pressure dew point. It is built for mid-size shops running 15–20 HP compressors — production environments, multi-bay auto shops, large body shops, or fabrication operations where air demand regularly pushes past 60 CFM. Unlike the smaller RD25 and RD59 units, the RD71-15K uses 1" NPT connections, matching the larger plumbing typical of 15–20 HP installations.
Same proven Castair refrigeration design: R134a or R407c refrigerant, stainless steel heat exchanger, automatic demand drain, and a simple dew point indicator. No computer boards to fail, no programming, no proprietary control systems to troubleshoot at 7 AM when you are trying to get the shop running.
How It Works
- Refrigeration cycle: Compressed air flows through the stainless steel dual-function heat exchanger. Freon cools the air to a 37°F dew point, condensing moisture into liquid that is ejected by the automatic drain.
- Dual-function heat exchanger: Pre-cools incoming hot air using outgoing cold air — improves efficiency and extends refrigerant component life.
- Automatic demand drain: Only activates when condensate is present. Conserves compressed air versus timer-based drains.
- Quick connect refrigerant port: Allows refrigerant recharge without full disassembly — a practical service feature for older units.
Key Features
- Rated capacity: 71 CFM at 37°F dew point (86 CFM at 50°F dew point)
- Connections: 1" NPT inlet and outlet — sized for 15–20 HP compressor installations
- Power: 115V / 1-phase / 60Hz with 9-foot three-prong power cord
- Current draw: 7.5 amps
- Refrigerant: R134a / R407c (environmentally compliant)
- Maximum inlet pressure: 232 PSIG
- Heat exchanger: Stainless steel for long service life
- Dew point indicator: Simple visual indicator, no computer logic required
- Certifications: UL listed
- Weight: 110 lbs
- Dimensions (W×D×H): 11.8" × 23.7" × 22.8"
What's in the Box
- Castair RD71-15K refrigerated air dryer unit
- 9-foot three-prong 115V power cord (pre-installed)
- Refrigerant pre-charged at the factory (R134a/R407c)
- 1" NPT inlet/outlet connections
Note: A properly sized pre-filter is required for warranty. Use a Castair 1" particulate filter (C-FS10) upstream of the dryer. For compressors without an aftercooler, install one before the dryer to maintain full rated capacity. The Castair #DP100 bypass kit is available for this unit — plumbed rather than mounted directly on the compressor.
Available Configurations / Upgrade Path
Where the RD71-15K fits in the Castair refrigerated dryer lineup:
- RD25-6K — 25 CFM @ 37°F: 3/4" NPT, 57 lbs. For 5–7.5 HP compressors.
- RD59-11K — 59 CFM @ 37°F: 3/4" NPT, 73 lbs. For 10–15 HP compressors.
- RD71-15K — 71 CFM @ 37°F: This unit. 1" NPT, 110 lbs. For 15–20 HP compressors.
- RD113-60K — 107 CFM @ 37°F: 1" NPT, 119 lbs. For 20–25 HP compressors.
- RD161-37K — 161 CFM @ 37°F: 1-1/2" NPT, 137 lbs. For high-demand shops.
- Larger custom sizes — call for pricing.
When Does a Shop Need This vs. Stepping Up or Down
The RD71-15K is the right dryer if:
- Your compressor is 15–20 HP and produces 60–71 CFM peak demand
- Your air supply lines are already 1" — the larger connection size eliminates the reducer hardware required with 3/4" dryers
- You run a multi-bay auto shop, a dedicated paint booth plus tool air, or a manufacturing operation with multiple pneumatic stations
- You have 115V single-phase power (three-phase not required)
Step up to the RD113-60K if:
- Your compressor produces more than 71 CFM peak demand
- You are running back-to-back production cycles or multiple spray guns simultaneously at full CFM draw
Capacity note: Ratings are based on 100°F inlet air, 100°F ambient, 100 PSI. At 150°F inlet air temperature, effective capacity drops to approximately 39 CFM. An aftercooler between the compressor and dryer is strongly recommended if your compressor runs without one.
Technical Specifications
- Model: RD71-15K
- CFM @ 37°F dew point: 71
- CFM @ 50°F dew point: 86
- Inlet/Outlet Connection: 1" NPT
- Voltage / Phase / Hz: 115V / 1-phase / 60Hz
- Amperage: 7.5 A
- Refrigerant: R134a / R407c
- Maximum Inlet Pressure: 232 PSIG
- Pressure Dew Point: 37°F
- Heat Exchanger: Stainless steel, dual-function single body
- Drain Type: Automatic, demand-based
- Power Cord: 9 ft, three-prong 115V plug
- Weight: 110 lbs
- Dimensions (W×D×H): 11.8" × 23.7" × 22.8"
- Certifications: UL Listed
