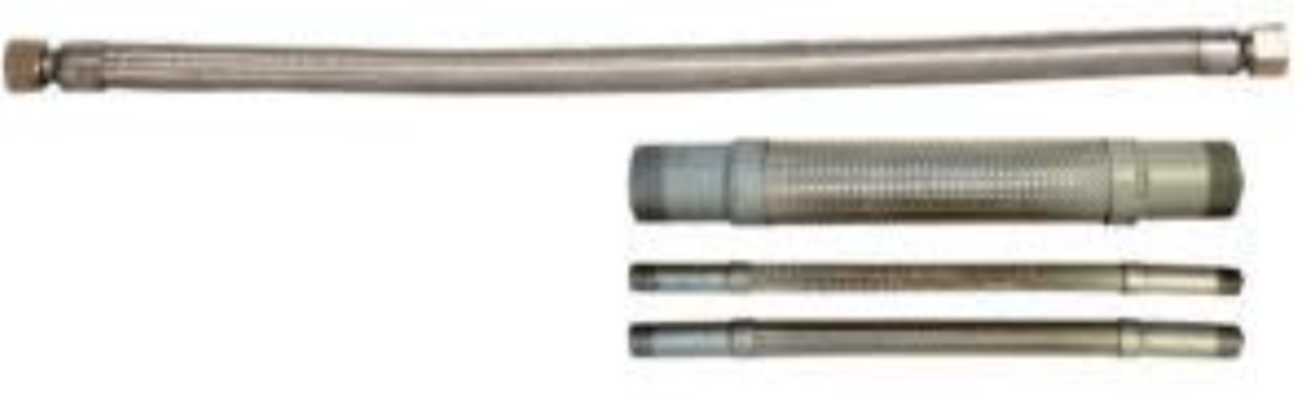

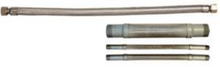

The Castair VA125 is a 1-1/4" NPT x 18" metal flex hose for 25-40 HP rotary screw air compressors. Rotary screw compressors in this HP range run at higher flow rates than equivalent piston units, and the 1-1/4" port size reflects that — it's a larger discharge connection than you'll find on most shop piston compressors. This flex hose handles the vibration isolation and thermal movement accommodation that any compressor installation requires, sized correctly for the flow volume these units produce.
Why This Size for Rotary Screw Compressors
Rotary screw compressors in the 25-40 HP range produce significantly more CFM than equivalent piston units. The 1-1/4" NPT port size on the discharge end is not arbitrary — it's sized to minimize pressure drop across the connection. Stepping down to a smaller flex hose on a high-flow unit creates a restriction that forces the compressor to work harder to maintain system pressure. Use the hose size that matches your compressor's discharge port exactly.
Rotary screw units also run continuously rather than cycling on and off like piston compressors. Continuous operation means the flex hose is under constant vibration and thermal stress — inspection and replacement on a regular maintenance schedule is more important than on a cycling piston unit that gets regular rest periods.
Key Features
- 1-1/4" NPT Connection: Sized for 25-40 HP rotary screw compressor discharge ports
- 18" Length: Standard length for direct pump-to-separator or discharge manifold connections
- Stainless Braided Flex Construction: Handles continuous operating vibration and thermal cycling
- OEM Castair Part: Factory-specified for Castair rotary screw packages in this HP range
- Both-End NPT: Direct thread connection — no adapters required on standard installations
When to Replace
- Exterior braid shows corrosion, fraying, or mechanical damage
- Active leak or seeping at either fitting — don't ignore small leaks on continuously running units
- Hose has stiffened and is no longer flexible — regular inspection should include a flex test
- Scheduled maintenance replacement — on continuously running rotary units, consider replacement at 3-5 year intervals regardless of visible condition
- Installation or reconfiguration requiring a new flex hose run
Available Configurations — Full Flex Hose Lineup
- VA075 ($59.29) — 3/4" NPT Male x 18" — smaller single-stage piston
- VA100 ($99.95) — 1" NPT Male x 18" — mid-size compressors
- VA050 ($46.59) — 1-1/2" NPT x 18"
- VA125 ($102.49) — 1-1/4" NPT x 18" — 25-40 HP rotary (this part)
- VA150 ($111.80) — 1-1/2" NPT Male x 18"
- VA200 ($131.29) — 2" NPT Male x 18"
- VA100J36 ($203.28) — 1" JIC Female/Female x 36" — extended length
What's in the Box
- 1x Castair VA125 Metal Flex Hose — 1-1/4" NPT x 18"
Technical Specifications
- Part Number: VA125
- Manufacturer: Cast Air / Castair
- Connection Type: 1-1/4" NPT, both ends
- Length: 18 inches
- Application: 25-40 HP rotary screw air compressors
- Category: Ball Valves / Flex Lines
- Price: $102.49
Pressure rating and full material specifications were not confirmed from manufacturer data at time of writing. Contact us if you need the full specification sheet for your installation documentation.
