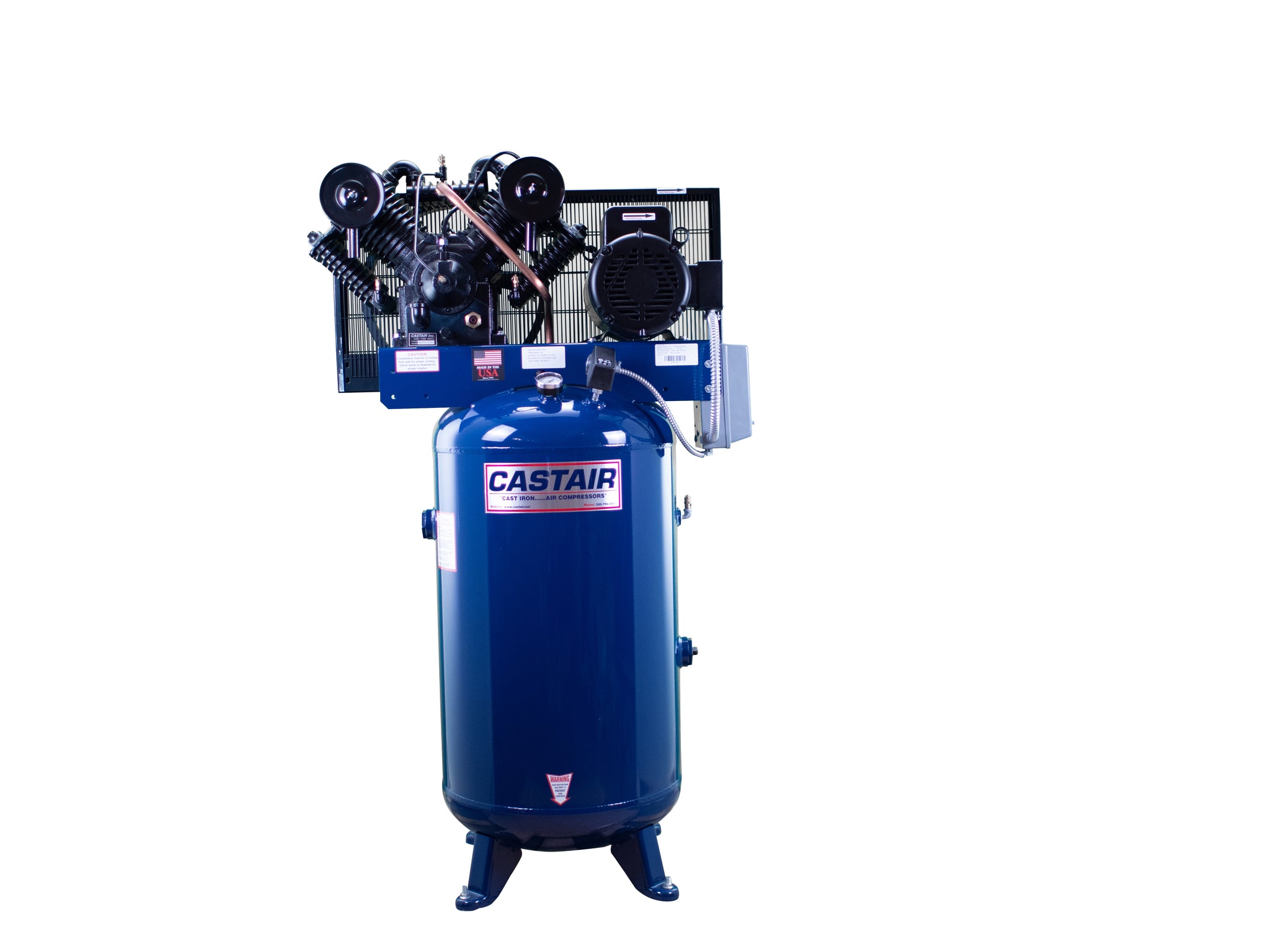

Castair I718VC2: 7.5 HP Single-Phase Industrial Air Compressor, 80-Gallon Vertical Tank, C2 Pump
The Castair I718VC2 is a 7.5 horsepower, single-phase industrial compressor on an 80-gallon vertical ASME tank, C2 pump configuration, without factory aftercooler. The aftercooler-equipped version is the I718VC2-S.
The C2 pump runs at 585 RPM and delivers 35.0 CFM free air (28.1 CFM at 175 PSI). The vertical tank footprint is 40x24x74 inches. Unit weight is 760 lbs.
Technical Specifications
- Model: I718VC2
- Horsepower: 7.5 HP
- Phase: Single-phase (1-phase)
- Voltage: 230V
- Tank capacity: 80 gallons
- Tank type: Vertical (VC)
- Pump RPM: 585
- Free air delivery (CFM @ 0 PSI): 35.0 CFM
- Delivery at working pressure (CFM @ 175 PSI): 28.1 CFM
- Maximum working pressure: 175 PSI
- Dimensions (L x W x H): 40 x 24 x 74 inches
- Weight: 760 lbs
- Aftercooler: Not included (see I718VC2-S for aftercooler version)
Industrial Cast Iron Pump Features
- All cast iron construction: Cylinder, head, crankcase
- Pump speed: 585 RPM — slow and quiet
- Tapered roller bearings: Both ends of crankshaft
- Precision steel connecting rods: Automotive-type insert bearings
- Disc and spring valves: Field-serviceable
- 4-ring pistons: Better sealing efficiency
- Centrifugal unloader: Loadless startup
I718VC2 vs. I718VC2-S
Same compressor, same specs. The I718VC2-S adds the factory-mounted beltguard aftercooler (#BGAC1M). For spray painting, sandblasting, or pneumatic controls, get the -S. For general service work where moisture is less critical, the base I718VC2 works — and you can add an aftercooler in the field if needed.
