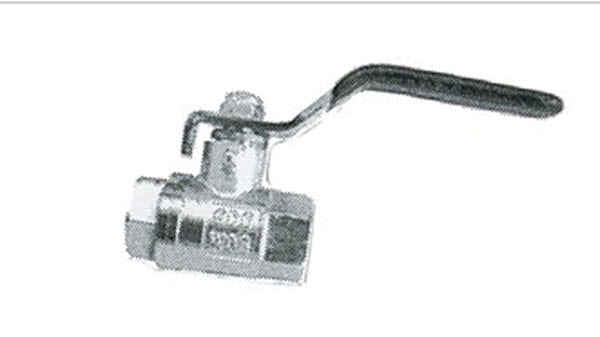

The Castair BV75 is a 3/4" NPT-Female Full Flow Ball Valve specifically rated for use with 5-10HP rotary screw and reciprocating compressors. At the 5-10HP range, you're moving serious CFM through the discharge line, and undersized or restricted valves create back pressure that reduces system output and stresses pump components. The BV75's full-flow design means the internal bore matches the 3/4" pipe diameter — no restriction, no pressure drop through the valve body itself.
Key Features
- 3/4" NPT Female Threads (Both Ports): Standard NPT female on inlet and outlet — fits 3/4" NPT male fittings throughout
- Full Flow Ball Design: Internal bore matches 3/4" pipe ID — no constriction through the valve
- Rated for 5-10HP Rotary Compressors: Designed to handle the flow and pressure demands of compressors in this HP range
- Quarter-Turn Operation: 90-degree handle from fully open to fully closed — clear, definitive positions
- Heavy-Duty Commercial Construction: Cast Air quality for industrial-grade compressed air systems
Technical Specifications
- Part Number: BV75
- Port Size: 3/4" NPT Female (inlet and outlet)
- Valve Type: Full flow ball valve
- Operation: Quarter-turn (90°)
- Thread Standard: NPT (National Pipe Taper)
- Rated For: 5-10HP rotary compressors
- Manufacturer: Cast Air
- Pressure rating and body material — contact us for complete specifications.
Why Valve Sizing Matters on Rotary Compressors
Rotary screw compressors at 5-10HP run continuously under load. They're not like a reciprocating compressor that cycles on and off — they're pushing air constantly, and anything that restricts discharge flow creates back pressure across the entire system. A full-flow valve at 3/4" keeps the discharge path open. An undersized or restricted-port valve at this flow rate will cost you real CFM and can cause the compressor to run hotter and cycle the high-temp shutdown more frequently. The BV75 is sized for this application from the ground up.
Applications
- Compressor Discharge Isolation: Install between the compressor outlet and the receiver tank as the primary system shutoff
- Tank Outlet Valve: Shutoff at the tank outlet to the distribution header
- Service Isolation: Isolate the compressor for maintenance without depressurizing the entire distribution system (with a check valve in the circuit)
- Main Header Shutoffs: Zone shutoffs on 3/4" header lines serving multiple branch drops
- Bypass Lines: Full-flow valve in a compressor bypass circuit
Valve Selection by Compressor Size
- Under 3HP / Small Tools: 1/4" BV25M or 3/8" BV38 at the tool drops
- 3-5HP / Multiple Users: 1/2" BV50 on branch lines
- 5-10HP Rotary or Reciprocating: 3/4" BV75 at the compressor and main header
- Above 10HP: Contact us — larger header valves and system-specific selection applies
