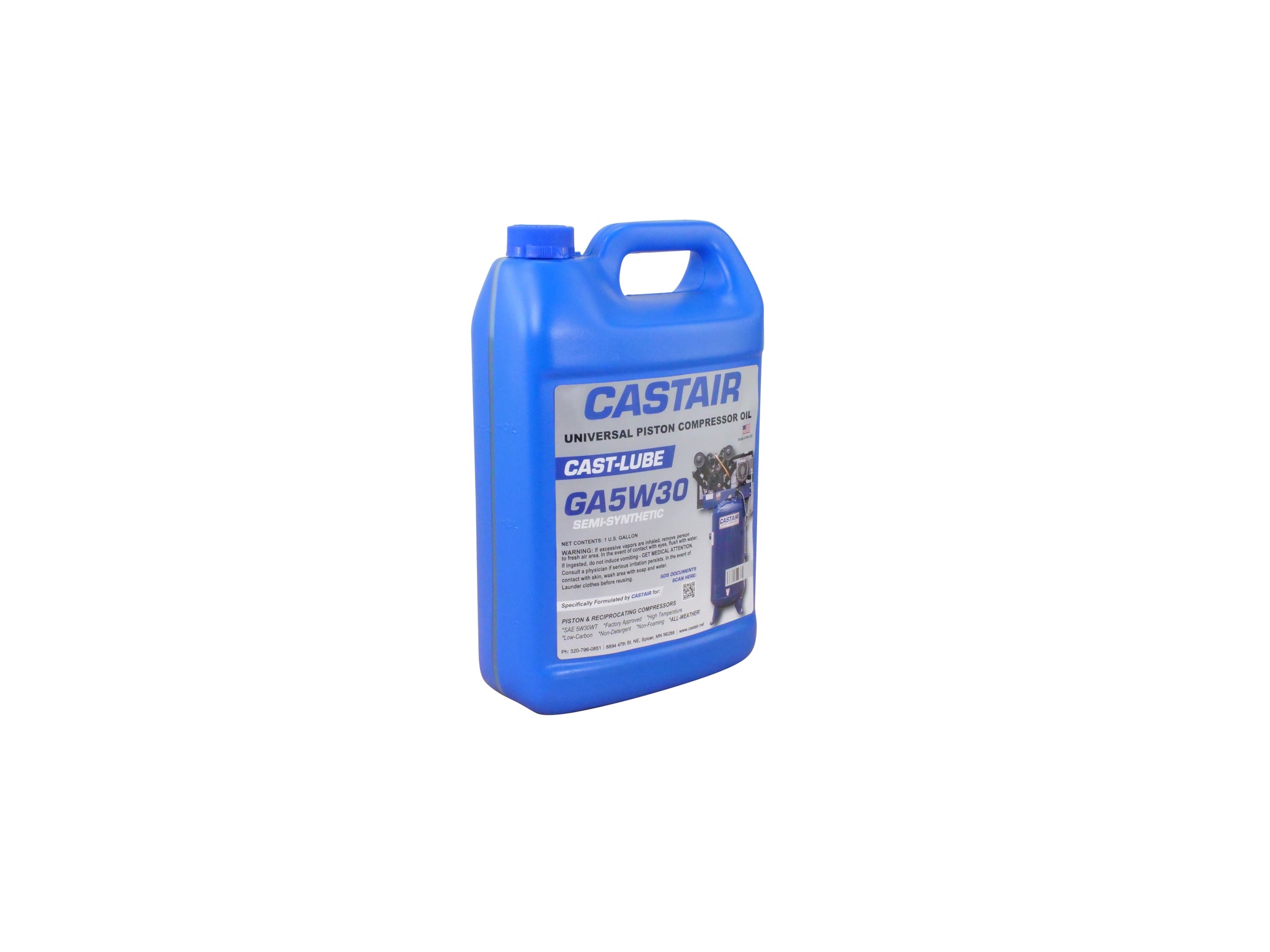

Castair CAST-LUBE Semi-Synthetic Compressor Oil for Piston Compressors — 1 Gallon, 5W30
The GA5W30 is the standard piston compressor oil in the CAST-LUBE lineup — a high-quality semi-synthetic 5W30 formulated specifically for air-cooled piston-type compressors. At 8.50 per gallon, it is the most affordable oil Castair makes, and it handles the core job well: lubricate the crankshaft, connecting rods, cylinder walls, and valve train without creating carbon deposits, foaming, or breaking down under the heat of a loaded compressor cycle. The service interval is 400 hours or 4 months — which for moderate-duty shop compressors typically aligns well with seasonal oil change practices.
Why Compressor Oil Is Not Just Motor Oil
This is the most common mistake shops make. Motor oil — even 5W30 — contains detergent additives that foam under pressure cycling and deposit varnish on compressor valve faces. Compressor valves are precision ground and operate at very tight clearances; deposits cause them to leak, reducing compressor efficiency and eventually causing valve failure. CAST-LUBE is formulated without those detergents. It is non-foaming, low-carbon, and designed to stay clean through the full service interval on a piston compressor. Using motor oil in your Castair piston compressor voids the warranty.
CAST-LUBE Semi-Synthetic 5W30 Features
- Semi-Synthetic Base: Multi-grade 5W30 formulation balances cost and performance — better cold-start flow than straight mineral oil, better high-temp stability than conventional grades
- -37°F Pour Point: Flows freely even in unheated shops or cold climates — important for compressors that sit in cold buildings overnight and start up cold in the morning
- Low Carbon Formula: Resists deposit buildup on valve seats, piston rings, and cylinder walls — the primary failure mode for neglected piston compressors
- Non-Foaming: Stays liquid under pressure cycling — foam in compressor oil leads to oil carryover in discharge air and accelerated wear
- High Temperature Rating: Maintains film strength at operating temperatures of air-cooled piston compressors running under load
- All-Season Universal: One oil year-round — no seasonal changeover required
- Factory Approved: Castair's specified semi-synthetic lubricant for piston compressor product line
- 400-Hour Service Rating: Recommended change at 400 hours or 4 months — well-suited to shop compressors running moderate duty cycles
GA5W30 vs. GA10W30 — Which Oil Does Your Compressor Need?
Both oils are approved for Castair piston compressors. The choice depends on duty cycle and how often you want to do oil changes:
Semi-Synthetic Options
- QT5W30 — Semi-Synthetic 5W30, 1 Quart: Same formula, smaller volume for top-offs or small compressors
- GA5W30 — Semi-Synthetic 5W30, 1 Gallon (8.50) — THIS PRODUCT: Standard service oil for Castair piston compressors. 400 hours or 4 months between changes.
Full Synthetic Options (Extended Service)
- QT10W30 — Full Synthetic 10W30, 1 Quart: Top-off or small compressor fill
- GA10W30 — Full Synthetic 10W30, 1 Gallon (3.91): Double the service interval — 800 hours or 8 months. Better choice for high-duty-cycle compressors or shops that want to minimize maintenance frequency.
When the Semi-Synthetic Is the Right Call vs. Stepping Up to Full Synthetic
For most shop compressors running 2-6 hours per day in moderate temperatures, the GA5W30 is the correct oil. It meets factory specification, it protects the pump properly, and at 8.50 per gallon it is easy to stay on a regular change schedule without watching the budget.
Consider upgrading to GA10W30 full synthetic if:
- Your compressor runs continuous or near-continuous duty — 8+ hours a day
- The shop runs hot in summer and you want extra thermal margin
- You want to cut oil change frequency in half (800-hour vs. 400-hour interval)
- You are running a large-HP compressor where pump longevity is the priority
What's in the Box
- 1 gallon (128 fl. oz.) of Castair CAST-LUBE Semi-Synthetic 5W30 Piston Compressor Oil
- Factory-sealed container
Technical Specifications
- Part Number: GA5W30
- Volume: 1 gallon (128 fl. oz.)
- Oil Type: Semi-synthetic
- Viscosity Grade: Multi-grade 5W30
- Pour Point: -37°F
- Service Interval: 4 months or 400 hours (whichever comes first)
- Application: Piston-type air compressors (NOT for rotary screw)
- Approved By: Castair factory specification
Why Buy From Air Compressor Factory Direct?

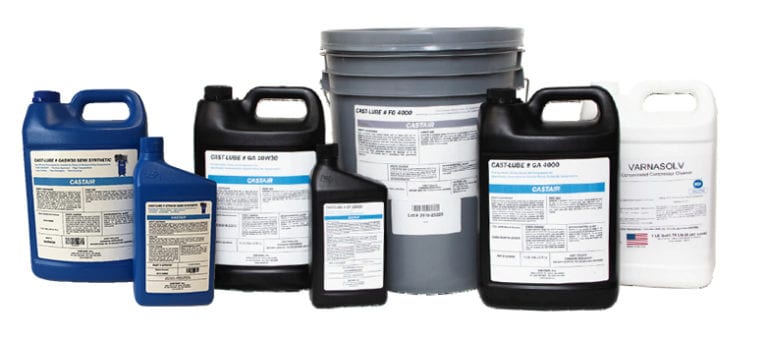

We specialize in Castair compressors and genuine Castair parts and consumables, and have since 2016. We stock the complete CAST-LUBE line — semi-synthetic, full synthetic, and rotary screw formulas — and can advise which oil your specific Castair unit requires. Free shipping on orders, free technical support at 866-217-0063, and honest guidance on whether the semi-synthetic or full synthetic is right for your duty cycle.
Call 866-217-0063 for quick answers and help!
