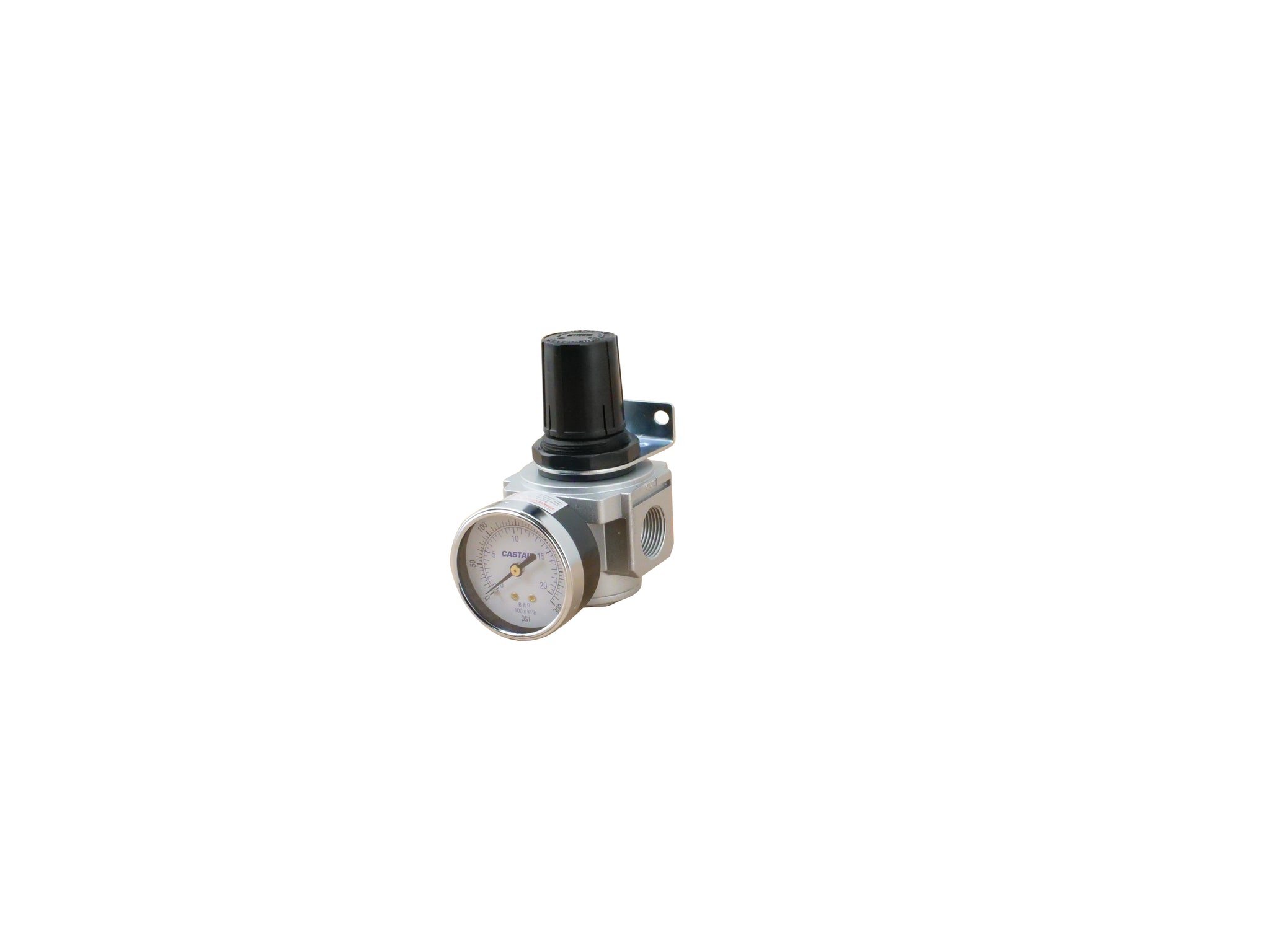

Castair C-RS34 3/4" Standard Air Regulator with Gauge
The Castair C-RS34 is a 3/4" NPT standard regulator built for commercial and industrial air compressor systems. If you're running a shop air system and need accurate, stable downstream pressure control at 3/4" line sizes, this is a straightforward, dependable regulator. It handles up to 250 PSI inlet pressure and flows up to 162 CFM — enough capacity for most shop air main lines at that pipe size. The included gauge gives you a clear read on downstream pressure so you can set it and trust it.
What This Regulator Does
- Function: Reduces and maintains downstream air pressure to the level required by air tools, paint equipment, or pneumatic devices
- Port Size: 3/4" NPT standard — fits directly into 3/4" threaded pipe connections on your main air distribution line
- Max Inlet Pressure: 250 PSI — compatible with all standard commercial air compressor systems
- Flow Capacity: 162 CFM — handles high-demand shop environments with multiple tools running simultaneously
- Gauge Included: Built-in pressure gauge for immediate downstream pressure visibility without a separate instrument
Where This Fits in Your Air System
Regulators go downstream of your tank and dryer, upstream of your distribution drops or specific equipment. The C-RS34 is sized for 3/4" systems — shops running 3/4" main lines to paint booths, body work stations, or general air drops. At 162 CFM, it won't be a bottleneck for most reciprocating or mid-size rotary screw compressor setups at that line size.
Castair Regulator Lineup
Castair offers regulators in standard NPT sizes. Choose the size that matches your existing pipe:
- C-RE14 — 1/4" Mini, 150 PSI max, 38 CFM (no gauge)
- C-RS12 — 1/2" Standard, 250 PSI max, 104 CFM with gauge
- C-RS34 (this unit) — 3/4" Standard, 250 PSI max, 162 CFM with gauge
- C-RS10 — 1" Standard, 250 PSI max, 162 CFM with gauge
- RS114 — 1-1/4" Standard, 250 PSI max, 400 CFM (no gauge)
- RS112 — 1-1/2" Standard, 250 PSI max, 500 CFM (no gauge)
Match port size to your existing line size. A 3/4" regulator on a 1" line creates a restriction — size the regulator to your pipe.
When Does a Shop Need the C-RS34 vs. Stepping Up or Down?
- Use the C-RS34 if your main distribution line is 3/4" and you need pressure regulation with gauge visibility. Common in smaller shops, paint prep areas, or as a secondary regulator feeding specific equipment from a larger main.
- Step down to C-RS12 (1/2") if you're plumbing a branch line to a single air tool or drop — 1/2" is better suited to lower-flow individual station drops.
- Step up to C-RS10 (1") if your main line is 1" pipe. Don't run a 3/4" regulator on a 1" line; it will restrict flow.
- Step up to RS114 or RS112 for large-volume systems with high-CFM rotary screw compressors pushing through large-diameter mains.
Pairing With Other Castair 3/4" Components
For a complete FRL (filter-regulator-lubricator) air treatment train, Castair makes matching 3/4" NPT components:
- C-FS34 — 3/4" Particulate filter, 5-micron, 250 PSI max, 160 CFM
- C-CF34 — 3/4" Coalescing filter, 0.01-micron (requires upstream particulate prefilter)
- C-FRS34 — 3/4" Filter/Regulator combination with gauge
- C-LS34 — 3/4" Lubricator, 250 PSI max, 160 CFM
Technical Specifications
- Part Number: C-RS34
- Manufacturer: Castair (Spicer, Minnesota)
- Type: Standard Regulator with gauge
- Port Size: 3/4" NPT
- Maximum Inlet Pressure: 250 PSI
- Flow Capacity: 162 CFM
- Gauge: Included
