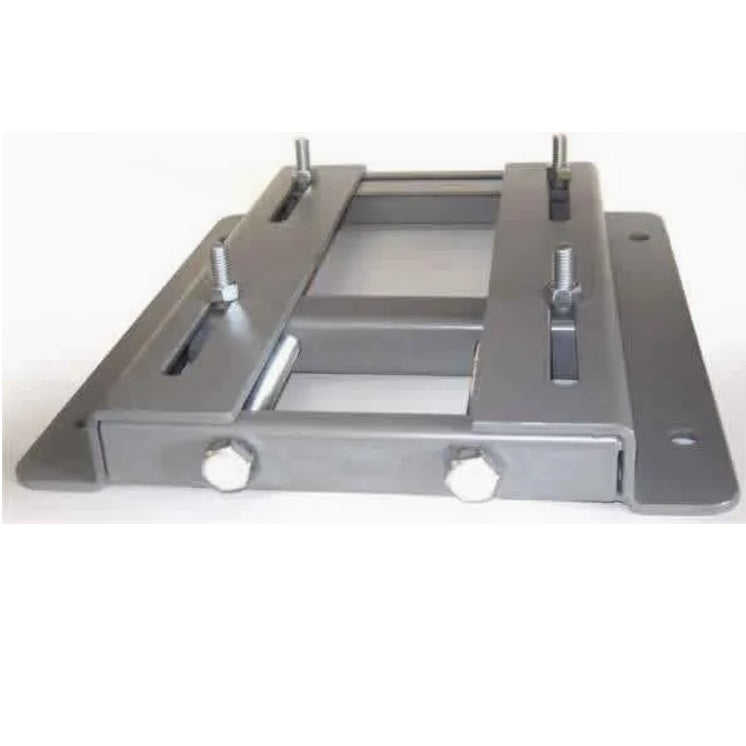

Castair Adjustable Belt Tensioner Base — 284D, 25 HP and 30 HP, 284 Frame Motors
The Castair 284D is the adjustable belt tensioner base for Castair belt-drive air compressors using 25 HP or 30 HP motors on the NEMA 284 frame. This is the base-only component — the adjustable slide plate and motor mounting bracket. At $203.28, it is the correct replacement when the tensioner base on your large-capacity Castair compressor is damaged or non-functional and the tensioner mechanism itself is still serviceable.
At 25 to 30 HP, a belt-drive compressor is putting serious torque through the drive. The belt forces acting on the motor mount are substantial — if the tensioner base cannot hold the motor firmly at the correct tension position, the entire drive system suffers. Slipping belts at this power level generate heat rapidly, wear sheave grooves, and can cause motor overcurrent from the torque load of trying to drive a slipping belt.
Part Details
- Part Number: 284D
- Type: Adjustable belt tensioner base (slide/bracket only — tensioner mechanism not included)
- Compatible Motor Sizes: 25 HP and 30 HP
- Motor Frame: NEMA 284 (284T or equivalent)
- Manufacturer: Cast Air (Castair)
- Price: $203.28
Where the 284D Fits in the Castair Tensioner Range
Castair offers tensioner bases matched to motor HP and frame across their belt-drive line:
- 215D ($138.91): For 7.5-10 HP, 215 frame motors
- 254D ($186.34): For 15 HP, 254 frame motors
- 256D ($186.34): For 20 HP motors
- 284D ($203.28, this part): For 25 HP and 30 HP, 284 frame motors
The 284D covers both 25 HP and 30 HP because both use the NEMA 284T motor frame. Confirm your motor HP is 25 or 30 HP before ordering. Do not use a smaller tensioner base on a larger motor — the structural load from the belt tension and motor weight exceeds what a smaller base is rated to handle.
Companion Motor for This Tensioner Base
The standard 25 HP Castair motor for this tensioner base is the 25-284-3 (25 HP, 208/230/460V, 3-phase, 284T frame, 1725 RPM, $2,360.74). If you are replacing the tensioner base as part of a motor replacement, you may also need the 25-284-3 motor.
Adjustable Base Function at 25-30 HP
- Sliding adjustment: Motor moves along the base to set belt tension. At 25-30 HP, correct tension is critical — too loose causes slippage, too tight overloads pump and motor bearings
- Structural requirement: The 284D is built to handle the reaction forces from a 25-30 HP belt drive. The base must resist the belt tension force without flexing or shifting
- Lock-down mechanism: Heavy-duty fasteners hold the motor in position under load. Verify all fasteners are properly torqued after any tension adjustment
When Does a Shop Need This Part?
- Damaged base on a large-capacity Castair compressor: Physical damage, corrosion, or structural failure of the tensioner base on a 25 or 30 HP unit requires replacement — the 284D is the correct OEM part
- Stripped adjustment hardware: If the slide adjustment hardware is stripped and the motor cannot be secured at the correct tension position, replace the base
- Major service on a 25-30 HP Castair compressor: When the compressor is already down for motor or pump service, evaluating and replacing an aging tensioner base is straightforward preventive maintenance
- Building or rebuilding a large Castair belt-drive compressor: The 284D paired with the 25-284-3 motor and appropriate pump and sheaves gives you the correct drive assembly for 25 HP operation
Technical Specifications
- Part Number: 284D
- Manufacturer: Cast Air (Castair)
- Motor HP Range: 25 HP, 30 HP
- Motor Frame: NEMA 284 (284T)
- Type: Adjustable tensioner base only
- List Price: $203.28
Note: Manufacturer product page data was not available at time of writing. Specifications are derived from the product name and part number. Contact us to confirm fit for your specific Castair compressor model before ordering.
