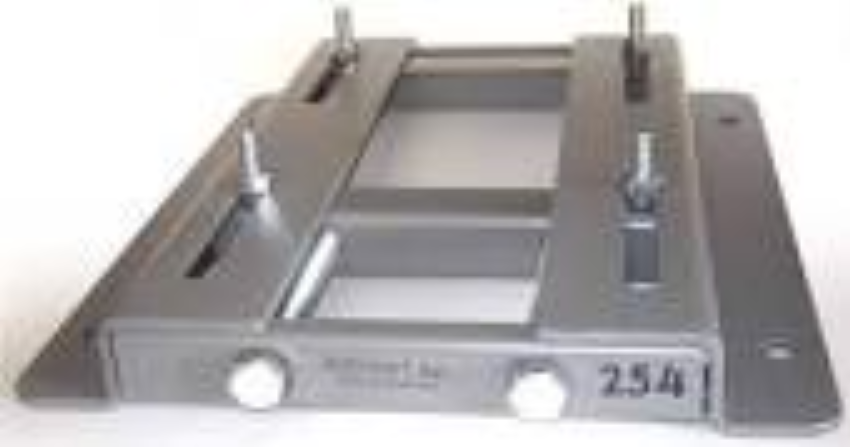

Castair Adjustable Belt Tensioner Base — 254D, 15 HP, 254 Frame Motors
The Castair 254D is the adjustable belt tensioner base — the slide plate and adjustment bracket — for Castair belt-drive air compressors using 15 HP motors on a 254 frame. This is the base component only. If your tensioner mechanism is still functional but the slide base is cracked, stripped, or bent and preventing proper tension adjustment, the 254D replaces the base without requiring purchase of the full 254DM assembly.
An adjustable tensioner base is what separates a compressor that you can maintain from one that fights you. The base allows the motor to slide toward or away from the pump sheave to set belt tension, then locks in place. As belts stretch over time, you slide the motor again to compensate. Without a functioning base, proper belt tension becomes impossible to maintain.
Part Details
- Part Number: 254D
- Type: Adjustable belt tensioner base (slide/bracket only — no tensioner mechanism)
- Compatible Motor Size: 15 HP
- Motor Frame: 254 (NEMA 254T or equivalent)
- Manufacturer: Cast Air (Castair)
- Price: $186.34
254D vs. 254DM — Base vs. Complete Assembly
- 254D (this part, $186.34): Base/slide bracket only. The structural component that mounts the motor and allows adjustment. Use when the base is the failed component and the mechanism is intact.
- 254DM ($214.95): Complete tensioner assembly — base plus tensioner mechanism. Use when you need a full replacement or are building from components.
The $28.61 difference between the two parts makes the 254DM a reasonable choice when you are already doing the work and the assembly is aged. Call us to discuss — we can help you decide based on the condition of your existing tensioner mechanism.
How the Tensioner Base Works
On a belt-drive compressor, the motor mounts on a sliding plate that can be moved along the base to change the center-to-center distance between motor and pump sheaves. Increasing this distance tensions the belt. Once set, the motor is bolted in position. The 254D provides this sliding base and locking mechanism for 15 HP compressors with 254 frame motors.
- Sliding adjustment: Motor shifts along the base to set the correct belt tension
- Lock-down fasteners: Secure the motor at the correct tension setting
- Frame-specific fit: Sized for 254 frame motors (NEMA 254T footprint)
- Material: Cast or fabricated steel — designed for the torque loads of a 15 HP drive
Companion Parts for 15 HP Castair Installations
- 254DM ($214.95): Complete tensioner assembly if base-only does not meet your needs
- 254Dx2M: Matched pair of 254D bases for duplex 15 HP compressor configurations
When Does a Shop Need This Part?
- Cracked or bent slide base: A dropped compressor or impact damage can compromise the base and prevent smooth motor adjustment
- Stripped adjustment hardware: If the motor cannot be secured in the correct tension position, the base needs replacement
- Tensioner mechanism is functional, base is failed: When you can confirm the mechanism still works, the 254D base-only saves cost over the full assembly
- Building a replacement compressor: Sourcing the correct OEM tensioner base for your motor frame ensures proper alignment from the start
Technical Specifications
- Part Number: 254D
- Manufacturer: Cast Air (Castair)
- Motor HP: 15 HP
- Motor Frame: 254
- Type: Adjustable tensioner base only
- List Price: $186.34
Note: Manufacturer product page data was not available at time of writing. Specifications are derived from the product name and part number. Contact us to confirm fit for your specific Castair compressor model before ordering.
Why Buy From Air Compressor Factory Direct?
We have specialized in air compressor parts and equipment since 2016. Castair belt tensioner components are part of our regular inventory. Call us with your compressor model number — we can confirm whether the 254D base or the 254DM complete assembly is the correct call for your repair.
- Free shipping on qualifying orders
- Free tech support: Call 866-217-0063 to confirm the right part for your compressor
- Full manufacturer warranty
- Honest guidance: We will point you to the 254D or the 254DM based on what your repair actually needs
