The Castair FSAC50 is a free-standing air-cooled aftercooler rated for 50 CFM. It cools compressed air from discharge temperatures as high as 350 degrees F back down to within 15 degrees of ambient, forcing the moisture that compression vaporizes to condense and drain at the aftercooler rather than throughout your shop air system. The result is up to 65% less water in your air lines, tools, and spray equipment. The 1" NPT connections and 40-pound unit fit mid-size shop compressor installations.
Why Aftercoolers Belong on Every Compressor Installation
Water in compressed air is not a filter problem — it is a temperature problem. Compression heats air and keeps moisture suspended as vapor. As that air travels through your distribution system and cools, the vapor condenses. Without an aftercooler, it condenses in your air lines, in your tools, in your spray guns. With an aftercooler immediately downstream of the compressor, it condenses where you can drain and control it.
Castair's data: every 20-degree temperature reduction removes 50% of the suspended moisture. The FSAC50 brings discharge air to within 15 degrees of ambient — typically producing a 65% total moisture reduction versus no aftercooling at all.
Key Specifications
- Part Number: FSAC50
- Style: Free standing
- Rated Capacity: 50 CFM
- Inlet/Outlet Connection: 1" NPT
- Dimensions (L x W x H): 21" x 12" x 31"
- Weight: 40 lbs
- Maximum Operating Pressure: 250 PSIG
- Maximum Operating Temperature: 350 degrees F inlet
- Performance Basis: 250-degree F inlet air temperature
- Electrical: 115V, 1-phase, 60 Hz
- Mounting: Floor or suspended; horizontal or vertical airflow
Free Standing vs. Belt Guard Style at 50 CFM
- BGAC2 — Belt guard style, 50 CFM, 1" connections, 18" x 14.5", 12 lbs. Mounts on or near the compressor. Available loose (BGAC2) or pre-mounted (BGAC2M).
- FSAC50 — Free standing, 50 CFM, 1" NPT, 21x12x31", 40 lbs. Installs independently of the compressor.
If your compressor is accessible and the belt guard area is workable, the BGAC2 is a simpler installation at 12 lbs. The FSAC50 works for installations where the compressor is in an enclosure or where remote mounting is preferred.

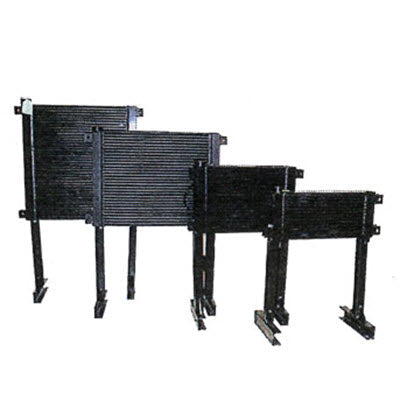

Free Standing Aftercooler Lineup
- FSAC35 — 35 CFM, 3/4" NPT, 21x12x27", 30 lbs
- FSAC50 — 50 CFM, 1" NPT, 21x12x31", 40 lbs (this model)
- FSAC75 — 75 CFM, 1" NPT, 27x15x36", 70 lbs
- FSAC100 — 100 CFM, 1-1/4" NPT, 26x16x42", 80 lbs
- AC120 — 120 CFM, 1-1/2" NPT, 140 lbs
- AC150 — 150 CFM, 1-1/2" NPT, 145 lbs
Sizing and Buying Guidance
- FSAC50 is correct for compressors delivering 35-50 CFM at the discharge port
- Step down to FSAC35 only if your compressor delivers under 35 CFM
- Step up to FSAC75 if your compressor delivers 50-75 CFM — never undersize an aftercooler; restriction increases backpressure and reduces cooling contact time
- Both FSAC50 and FSAC75 use 1" NPT connections — if you are between 50 and 75 CFM, use the FSAC75
Optional Accessories
- Filter with auto drain — Available on all free-standing models
- Temperature control valve #86816 — Prevents overcooling in cold ambient temperatures
