Castair 30 HP 208/230 Volt. 3 Phase* Magnetic Starter S302

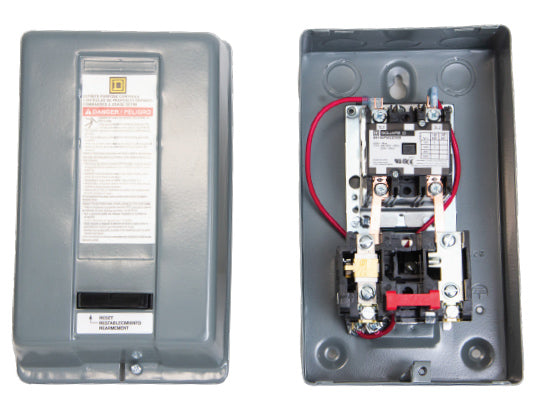

Castair S302 Magnetic Motor Starter — 30 HP, 208/230V, 3-Phase with Overload

The Castair S302 is a magnetic motor starter sized for 30 HP air compressor motors running on 208/230V three-phase power. It includes a built-in overload relay for motor protection. The correct overload heater element for this starter is CC143 — three heater elements are required for proper operation. This is the OEM-spec starter Castair uses in their industrial and commercial compressor builds at this HP and voltage rating.

At 208/230V 3-phase, this starter handles higher line current than the 460V equivalent at the same 30 HP rating, which is reflected in higher pricing for the upper HP models in this voltage class.

Magnetic motor starters handle two distinct jobs on an air compressor: switching the motor on and off in response to the pressure switch signal (the contactor function), and protecting the motor from overload conditions that would otherwise burn out the windings (the overload relay function). On a compressor that starts and stops repeatedly throughout a workday, a correctly sized starter with properly rated heater elements is not optional — it is what keeps a 30 HP motor running for years instead of failing prematurely.

How Magnetic Motor Starters Work on Air Compressors

\n
• Contactor function: The pressure switch sends a low-voltage control signal to the magnetic coil. The coil energizes and closes the high-current power contacts, connecting line voltage to the motor. When tank pressure reaches the cutout setpoint, the pressure switch opens, the coil de-energizes, and the contacts open to stop the motor.
\n
• Overload relay function: Heater elements in the overload relay sense motor current. If the motor draws excessive current — from mechanical binding, low supply voltage, locked rotor, or genuine overload — the heaters trip the overload relay and disconnect the motor before windings overheat. The relay resets manually after the fault is corrected.
\n
• Why correct sizing matters: A heater element that is too small will trip on normal starting current. An element that is too large won't trip in time to prevent motor damage. The CC143 heater is sized specifically for 30 HP at 208/230V three-phase — do not substitute a different heater number.
\n

Technical Specifications

\n
• Part Number: S302
\n
• Manufacturer: Castair, Inc. (Spicer, MN)
\n
• Motor HP Rating: 30 HP
\n
• Voltage Rating: 208/230 Volt
\n
• Phase: 3-Phase
\n
• Overload Protection: Included (overload relay with heater element socket)
\n
• Required Heater Element: CC143 (three required for this 3-Phase starter)
\n

Heater Element Requirement: CC143

\n
• Heater Number: CC143
\n
• Quantity Required: Three (3-Phase)
\n
• Heater elements must match the motor's full-load amp draw at operating voltage. The CC143 heater is sized for 30 HP at 208/230V three-phase. Using an incorrectly sized heater will cause either nuisance tripping (undersized) or inadequate motor protection (oversized).
\n
• If replacing a starter where the original heater elements are missing or unknown, use CC143 for this application. Have motor nameplate FLA available when ordering to confirm.
\n

Full Castair Magnetic Motor Starter Lineup

\n
• S51 — 5 HP, 208/230V, 1-Phase, Heater: B36 ($267.96)
\n
• S71 — 7.5 HP, 208/230V, 1-Phase, Heater: B45 ($309.54)
\n
• S52 — 5 HP, 208/230V, 3-Phase, Heater: B25 ($237.16)
\n
• S54 — 5 HP, 460V, 3-Phase, Heater: B11.5 ($237.16)
\n
• S72 — 7.5 HP, 208/230V, 3-Phase, Heater: B36 ($287.21)
\n
• S74 — 7.5 HP, 460V, 3-Phase, Heater: B22 ($237.16)
\n
• S154 — 15 HP, 460V, 3-Phase, Heater: B32 ($287.21)
\n
• S202 — 20 HP, 208/230V, 3-Phase, Heater: CC87.7 ($592.90)
\n
• S204 — 20 HP, 460V, 3-Phase, Heater: B40 ($413.49)
\n
• S252 — 25 HP, 208/230V, 3-Phase, Heater: CC132 ($776.16)
\n
• S254 — 25 HP, 460V, 3-Phase, Heater: B45 ($616.00)
\n
• S302 — 30 HP, 208/230V, 3-Phase, Heater: CC143 ($1,135.75)
\n
• S304 — 30 HP, 460V, 3-Phase, Heater: B56 ($616.00)
\n

When Does a Shop Need the S302?

\n
• Order the S302 if your compressor motor is exactly 30 HP at 208/230V three-phase. Starter HP rating, voltage, and phase must all match the motor nameplate. Do not use a starter rated for a different HP, voltage, or phase on a mismatched motor.
\n
• Voltage confirmation required: A 208/230V starter operates on 208/230V power only. Verify your shop supply voltage before ordering. 208/230V is the most common shop voltage for smaller facilities. If your panel feeds 460V 3-phase, order the 460V variant.
\n
• Phase confirmation required: This is a 3-phase starter requiring 3-phase electrical service. If your shop only has single-phase service, you need the S51 (5 HP) or S71 (7.5 HP) single-phase starters.
\n
• Replacement scenario: Replacing a failed starter on an existing compressor? Match the original motor HP, voltage, and phase from the motor nameplate to find the correct replacement part number.
\n

What’s in the Box

\n
• 1x Castair S302 magnetic motor starter with overload relay
\n
• Heater element CC143 sold separately (three required) — confirm availability when ordering
\n

Installation Notes

\n
• Magnetic motor starters must be installed and wired by a qualified electrician in accordance with NEC requirements and local electrical codes.
\n
• The starter requires 208/230V three-phase power supply. Verify panel capacity and circuit breaker sizing for 30 HP motor load before installation.
\n
• Do not start the compressor without the correct heater elements installed and the overload relay properly set. Running without overload protection risks immediate motor damage on the first overload event.
\n
• For wiring diagrams and duty cycle guidance, see Castair's installation resources at castair.net/guides/.
