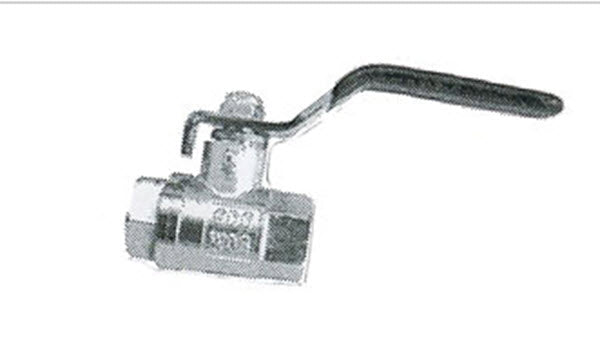

The Castair BV38 is a 3/8" NPT-Female Full Flow Ball Valve designed for compressed air distribution systems that need a no-restriction shutoff at moderate flow rates. "Full flow" means the internal bore matches the pipe diameter — you're not throttling your air supply through an undersized port. If your shop runs 3/8" supply lines to spray booths, air tools, or pneumatic equipment, this valve gives you clean, positive shutoff without the pressure drop you'd see from a restricted-port valve.
Key Features
- 3/8" NPT Female Threads (Both Ports): Fits standard 3/8" NPT male fittings on air lines, regulators, filter-regulator-lubricator (FRL) assemblies, and manifolds
- Full Flow Ball Design: Full-bore internal passage eliminates flow restriction — important when you need consistent CFM delivery to tools
- Quarter-Turn Operation: 90-degree handle travel from fully open to fully closed — no partial positions, no guesswork
- Cast Air Commercial Construction: Built for the pressure and duty cycle demands of shop and industrial air systems
- Standard NPT Threading: Direct replacement for any 3/8" NPT ball valve in your current system
Technical Specifications
- Part Number: BV38
- Port Size: 3/8" NPT Female (inlet and outlet)
- Valve Type: Full flow ball valve
- Operation: Quarter-turn (90°)
- Thread Standard: NPT (National Pipe Taper)
- Manufacturer: Cast Air
- Pressure rating and body material — contact us for complete specifications.
Where This Valve Gets Used
- Air Tool Supply Lines: Shutoff at each drop for impact wrenches, ratchets, and other shop air tools
- Spray Gun and Paint Booth Lines: Full-flow design maintains consistent delivery pressure at the gun
- FRL Assembly Inlets: Isolation valve upstream of filter-regulator-lubricator units for servicing without system depressurization
- Branch Line Shutoffs: Isolate sections of your shop distribution system independently
- Pneumatic Equipment Feeds: Any 3/8" supply connection on production or maintenance equipment
Full Flow vs. Standard Port — Why It Matters
A standard-port ball valve has an internal bore smaller than the pipe it's installed in. That restriction reduces CFM and drops pressure, which matters when you're running high-demand tools or multiple tools simultaneously. The BV38's full-flow design keeps the passage open to the full 3/8" diameter. If you're supply-limited on an air tool circuit, switching to full-flow valves is one of the first things worth checking before you start upsizing pipe.
