Castair 3/4"x3/4" In-Tank Check Valve Compression Tube Fitting Inlet / NPT Outlet CTD3434

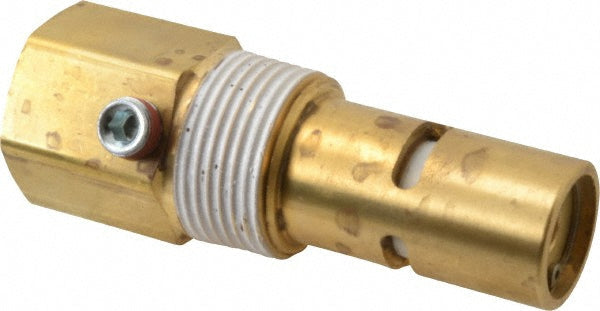

The Castair CTD3434 is a 3/4" x 3/4" in-tank check valve with compression tube fitting inlet and 3/4" NPT male outlet. At $29.65, it's used when 3/4" copper discharge tubing connects to the check valve, which then threads into the 3/4" NPT tank bung. The compression inlet secures the copper tube without threading; the NPT male outlet threads directly into the tank connection. Rated 500 PSIG and 400 degrees F with a 1/8" unloader port.
Technical Specifications
- Part Number: CTD3434
- Inlet Connection: 3/4" Compression tube fitting
- Outlet Connection: 3/4" NPT Male
- Pressure Rating: 500 PSIG
- Temperature Rating: 400 degrees F
- Unloader Port: 1/8" side port
- Price: $29.65
- Manufacturer: Castair (Spicer, Minnesota)
CTD3434 vs. CTB3434
- CTD3434 (this listing): Compression tube fitting inlet — 3/4" copper tubing inserts into the inlet and is secured by a compression nut and sleeve. Use when discharge runs copper tubing.
- CTB3434: NPT female inlet — a male NPT fitting threads into the valve inlet. Use when discharge uses threaded pipe fittings.
Both connect to the tank via 3/4" NPT male outlet. The only difference is how the discharge side connects to the valve.
CTD Series Full Reference
- CTD3838 — 3/8" comp x 3/8" NPT, $20.33
- CTD3812 — 3/8" comp x 1/2" NPT, $20.33
- CTD1212 — 1/2" comp x 1/2" NPT, $21.18
- CTD1238 — 1/2" comp x 3/8" comp, $25.41
- CTD1234 — 1/2" comp x 3/4" NPT, $29.65
- CTD3434 — 3/4" comp x 3/4" NPT (this listing), $29.65
- CTD3410 — 3/4" comp x 1" NPT, $46.59
