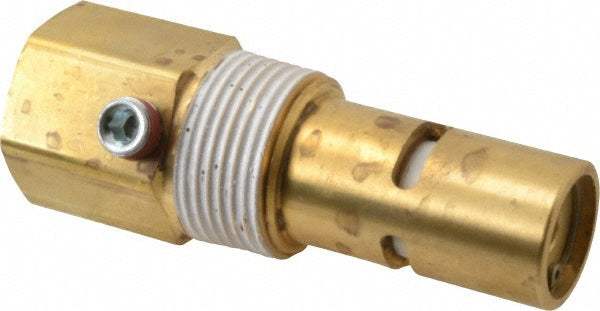

Castair 3/4"x1" In-Tank Check Valve Compression Tube Fitting Inlet / NPT Outlet CTD3410
The Castair CTD3410 is the largest check valve in the CTD compression inlet series — 3/4" compression tube fitting inlet, 1" NPT male outlet. At $46.59, this is a heavy-duty valve for large industrial reciprocating compressors where 3/4" copper discharge tubing connects to a check valve that then threads into a 1" NPT tank bung. One valve body handles both the compression tube connection and the step-up to the larger tank port. Rated 500 PSIG and 400 degrees F with a 1/8" unloader port.
Technical Specifications
- Part Number: CTD3410
- Inlet Connection: 3/4" Compression tube fitting
- Outlet Connection: 1" NPT Male
- Pressure Rating: 500 PSIG
- Temperature Rating: 400 degrees F
- Unloader Port: 1/8" side port
- Price: $46.59
- Manufacturer: Castair (Spicer, Minnesota)
When You Need CTD3410
- 3/4" copper discharge tubing runs from the compressor head
- Tank has a 1" NPT female bung
- Need one valve body to handle both the compression tube connection and the size step-up
- Typical on large reciprocating compressors in the 7.5-15 HP range where Castair builds with this specific tube/tank configuration
CTD Series Full Reference
- CTD3838 — 3/8" comp x 3/8" NPT, $20.33
- CTD3812 — 3/8" comp x 1/2" NPT, $20.33
- CTD1212 — 1/2" comp x 1/2" NPT, $21.18
- CTD1238 — 1/2" comp x 3/8" comp, $25.41
- CTD1234 — 1/2" comp x 3/4" NPT, $29.65
- CTD3434 — 3/4" comp x 3/4" NPT, $29.65
- CTD3410 — 3/4" comp x 1" NPT (this listing), $46.59
