Castair 3/4" Female NPT 3/4" NPT-F Outlet Vent Outlet 1/2" NPT 50 Max. CFM Electric Dual 3 Way Pilot Valve NLDC-1

Castair NLDC-1 Three-Way Pilot Valve — 3/4" NPT Electric Dual, 50 CFM

The Castair NLDC-1 is a heavy-duty three-way pilot valve for electric dual air compressor systems that require 50 CFM flow capacity and 3/4" NPT control line connections. It is the large-bore electric dual counterpart to the NDC-1 — same solenoid-operated three-way function, but built for higher-flow applications where 1/2" NPT valves and their 25 CFM limit are not sufficient. At $324.94 it costs significantly more than the NDC-1 ($110.11), which reflects the larger body, higher-capacity internals, and 1/2" NPT vent port rather than 3/8" NPT.

Before ordering, confirm three things: your compressor is electric motor-driven with a dual-pressure-switch control system (not a gas engine), your control lines are 3/4" NPT, and your compressor's flow demand at the control valve actually approaches or exceeds what a 25 CFM valve can handle. If your system runs comfortably on 1/2" NPT plumbing with the NDC-1, there is no reason to upsize — but if you have a two-stage or large single-stage electric compressor with 3/4" control lines, the NLDC-1 is the correct fit.

What the NLDC-1 Does in the Control System

• High-Flow Load/Unload Control: The NLDC-1 manages the load/unload cycle for larger electric compressors. When the pressure switch signals cut-out, the solenoid shifts the valve to vent the unloader line and allow the compressor head to unload while the motor continues running or prepares to stop.
• Three-Way Function: Three ports handle the full control cycle — inlet (from tank/discharge control line), outlet (to unloader mechanism), and vent (exhausts trapped pressure through the 1/2" NPT port on unload). The larger 1/2" NPT vent port vs. the 3/8" NPT on the smaller valves reflects the higher volume of pressure that needs to be exhausted quickly in high-CFM applications.
• Solenoid Operation — Electric Dual: The NLDC-1 is solenoid-operated, energized by the pressure switch electrical signal. The solenoid coil shifts the valve spool between load and unload positions. No pneumatic pilot line is needed — the electrical signal from the pressure switch is the control input.
• 50 CFM Capacity: Double the flow capacity of the NDC-1. For large reciprocating compressors where the control circuit passes significant air volume, the NLDC-1 handles it without the pressure drop that would cause control failures on an undersized valve.
• 3/4" NPT Connections: Both inlet and outlet are 3/4" female NPT. This matches the larger control line plumbing used on industrial-duty compressors. Attempting to step down from 3/4" plumbing to a 1/2" valve with reducers is workable in some cases but introduces unnecessary restriction in a flow-sensitive circuit.

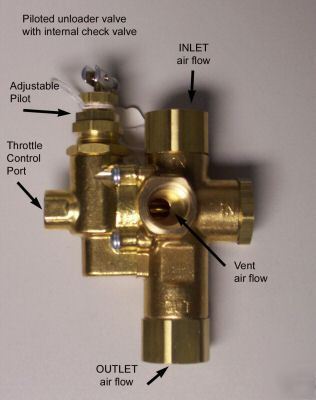

Port Configuration and Plumbing

• Inlet: 3/4" female NPT — connects to the discharge or tank control line
• Outlet: 3/4" female NPT — connects to the unloader mechanism on the compressor head
• Vent Outlet: 1/2" NPT — exhausts trapped pressure on unload; larger port matches the higher exhaust volume of 50 CFM systems. A muffler on this port reduces noise — verify 1/2" NPT muffler compatibility.
• Pilot Ports: 1/8" female NPT — solenoid control signal connection
• PSI Range Options: Order NLDC-1100 for 100–120 PSI systems, or NLDC-1140 for 140–170 PSI systems. Internal spring calibration differs between the two — using the wrong pressure range causes cycling at incorrect pressure points, which stresses the motor and unloader mechanism.

How a Three-Way Pilot Valve Works

A three-way pilot valve manages three flow paths in the compressor control circuit. In loaded operation, the valve holds the inlet-to-outlet path open, delivering the control pressure signal to the unloader mechanism and keeping the compressor head in full-compression mode. When the pressure switch reaches cut-out, it energizes the NLDC-1's solenoid. The solenoid shifts the valve spool: the inlet is blocked, and the outlet connects to the 1/2" NPT vent port. The trapped pressure in the unloader line exhausts through the vent, allowing the unloader to open and the compressor head to run free.

When pressure drops to the cut-in point, the pressure switch de-energizes the solenoid. The spring returns the spool to loaded position: inlet reconnects to outlet, the vent closes, and the unloader line re-pressurizes. The unloader closes and the compressor resumes full compression. In a dual-pressure-switch system, this cycling happens automatically and continuously throughout the operating shift. The 1/2" NPT vent port must remain unobstructed — any restriction on the vent delays or prevents unloading and can cause motor overload or compressor head damage.

Electric Dual System — What This Means for Your Compressor

• Dual-Pressure-Switch Control: An electric dual system uses a pressure switch that both controls motor start/stop and signals the unloader valve. The NLDC-1's solenoid is wired into this circuit and responds to the same signal that controls the motor contactor.
• Motor Protection Function: Proper unloading through the NLDC-1 prevents the motor from starting against full line pressure, protecting the motor from excessive current draw and start failures. An undersized or failed pilot valve means the motor is fighting full tank pressure every time it restarts.
• No Mechanical Pilot Line Required: Unlike gas engine systems that use a pneumatic pilot signal, the electric dual system wires the solenoid directly to the pressure switch circuit. The NLDC-1 receives an electrical signal and converts it to valve actuation. Simpler to troubleshoot — if the coil is energized and the valve is not shifting, the valve needs replacement.
• Gas Engine Alternative: For gas engine drives at 50 CFM with similar port sizes, see the NLG-7 (3/4" male compression inlet, 3/4" male NPT outlet, 1/2" NPT vent, same 50 CFM rating). The NLG-7 is mechanically operated, no solenoid.

Pilot Valve Selection Guide — Complete Castair Lineup

Use this table to confirm the NLDC-1 fits your application, or identify the correct valve if your system specs differ:

PSI Suffix: Add 100 (100–120 PSI) or 140 (140–170 PSI) when ordering. Example: NLDC-1100 or NLDC-1140.

When Does a Shop Need the NLDC-1 vs. Alternatives

• NLDC-1 is right when: You have a large electric motor-driven reciprocating compressor with 3/4" NPT control lines, an electric dual (pressure switch) control system, and the compressor demands more than 25 CFM through the control valve. Large two-stage shop compressors and industrial single-stage units often fall in this category.
• Step down to NDC-1 when: Your electric dual compressor has 1/2" NPT control lines and operates at 25 CFM or less at the valve. The NDC-1 at $110.11 is the correct and less expensive choice for smaller electric systems. Do not oversize the valve unnecessarily — proper fit matters more than bigger capacity.
• Use NLG-7 instead when: Your compressor is gas engine-driven rather than electric. The NLG-7 has the same 50 CFM capacity and similar port sizing (3/4" male compression inlet, 3/4" male NPT outlet, 1/2" NPT vent) but is mechanically operated, not solenoid-operated. The price is identical at $324.94.
• Consider the 2-way BLE when: Your system only needs a 2-way pilot function at 60 CFM with 1/2" NPT connections. The BLE has a higher CFM rating than the NDC-1 but a simpler 2-way function with a different vent arrangement — confirm your control circuit design before substituting.
• Do not substitute a 25 CFM valve on a 50 CFM system: Undersizing the pilot valve is a real failure mode. An undersized valve creates pressure drop in the control circuit, causing slow or incomplete unloading. The compressor then cycles erratically, the motor takes hard starts, and the unloader mechanism wears prematurely.

Technical Specifications

• Part Number: NLDC-1
• Valve Type: 3-way pilot valve
• Application: Electric dual air compressor control systems
• Operation: Solenoid-operated
• Inlet Port: 3/4" female NPT
• Outlet Port: 3/4" female NPT
• Vent Outlet Port: 1/2" NPT
• Pilot Ports: 1/8" female NPT
• Maximum Flow Capacity: 50 CFM
• Pressure Range Options: 100–120 PSI (order as NLDC-1100) or 140–170 PSI (order as NLDC-1140)
• Manufacturer: Castair
• Price: $324.94

Why Buy From Air Compressor Factory Direct?

Air Compressor Factory Direct specializes in air compressor controls, valves, and replacement components. We have stocked Castair pilot valves since 2016, including the NLDC-1 in both pressure ranges. For a $324.94 purchase, it matters that you order the right valve — the correct pressure range and the correct application type (electric dual vs. gas engine). When you call us, we will walk through the application with you before the order ships.

• Free Shipping: All orders ship free. No minimum order, no handling fees.
• Free Tech Support: Call 866-217-0063 before ordering. We will confirm whether your system needs the NLDC-1100 or NLDC-1140, and whether the NLDC-1 or NLG-7 is correct for your drive type. Five minutes on the phone saves a return shipment.
• Full Manufacturer Warranty: Every Castair valve we sell carries the full manufacturer warranty. We do not sell grey-market parts or refurbished valves.
• Honest Sizing Guidance: If your compressor actually runs comfortably on the 25 CFM NDC-1, we will tell you to save $200 and order that instead. We do not push the more expensive valve when it is not needed.

Call 866-217-0063 for quick answers and help!
