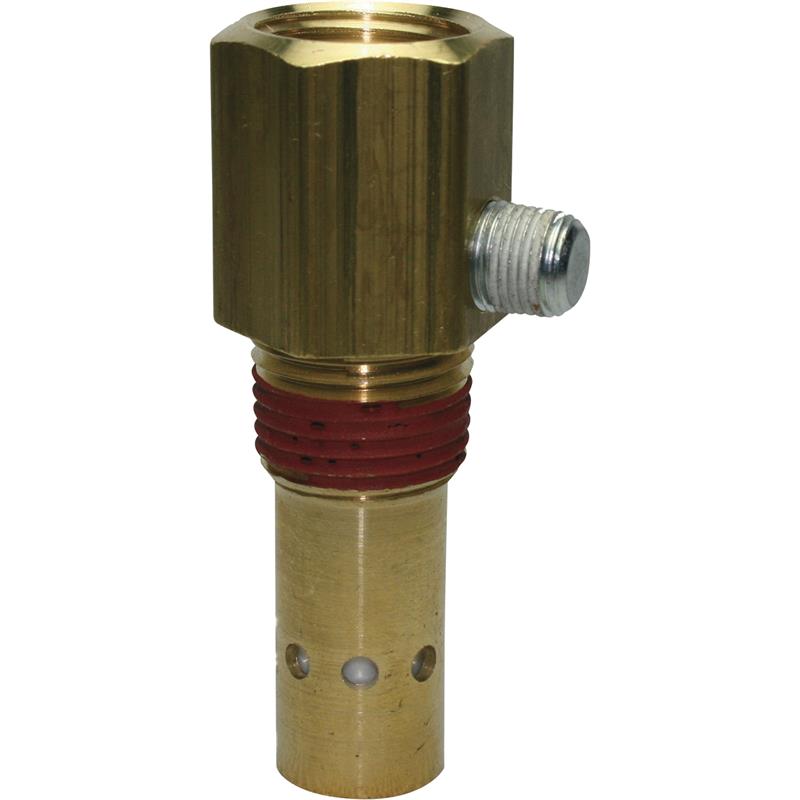

Castair 1"x1" In-Tank Check Valve NPT Female Fitting Inlet / NPT Male Outlet CTB1010
The Castair CTB1010 is a heavy-duty in-tank check valve with 1" NPT female inlet and 1" NPT male outlet. Rated to 500 PSIG and 400 degrees F with a 1/8" side port for unloader connection, this valve is the correct factory replacement for large-bore Castair compressor systems with 1" tank connections. The NPT female inlet threads onto the compressor discharge; the NPT male outlet threads into the 1" tank bung. At $50.82, it's a precision replacement that matches the configuration your compressor was built with.
What an In-Tank Check Valve Does
- One-way flow: Allows compressed air to flow from the compressor into the tank during the compression stroke, prevents air from flowing back through the discharge when the compressor unloads or stops
- Unloader port: The 1/8" side port connects to the pressure switch unloader line, allowing head pressure to bleed off at shutdown so the motor restarts unloaded
- Tank protection: Holds compressed air in the tank when the compressor is off — without this valve, the tank back-bleeds through the compressor
- Failure symptom: Short-cycling, frequent restarts, or slow tank pressure loss when the compressor is off are common signs of a failed check valve
Technical Specifications
- Part Number: CTB1010
- Inlet Connection: 1" NPT Female
- Outlet Connection: 1" NPT Male
- Pressure Rating: 500 PSIG
- Temperature Rating: 400 degrees F
- Unloader Port: 1/8" side port
- Price: $50.82
- Manufacturer: Castair (Spicer, Minnesota)
Castair CTB Series — Full NPT Female Inlet Lineup
- CTB3812 — 3/8" x 1/2", $21.18
- CTB1212 — 1/2" x 1/2", $20.33
- CTB1234 — 1/2" x 3/4", $29.65
- CTB3434 — 3/4" x 3/4", $31.34
- CTB1010 — 1" x 1" (this listing), $50.82
- CTB114114 — 1-1/4" x 1-1/4" (call for pricing)
- CTB112112 — 1-1/2" x 1-1/2" (call for pricing)
When You Need CTB1010 vs. Smaller Sizes
- CTB1010: Large reciprocating compressors, typically 7.5 HP and above, with 1" NPT discharge ports and 1" tank bungs
- CTB3434: Mid-size commercial compressors, typically 3-7.5 HP, with 3/4" connections
- CTB1212 / CTB1234: Smaller commercial units, 1.5-5 HP, with 1/2" discharge connections
CTB vs. CTD Series
- CTB (this series): NPT female inlet — threaded pipe connection on the discharge side
- CTD series: Compression tube fitting inlet — copper tubing inserts and is clamped with compression fitting, no threading
