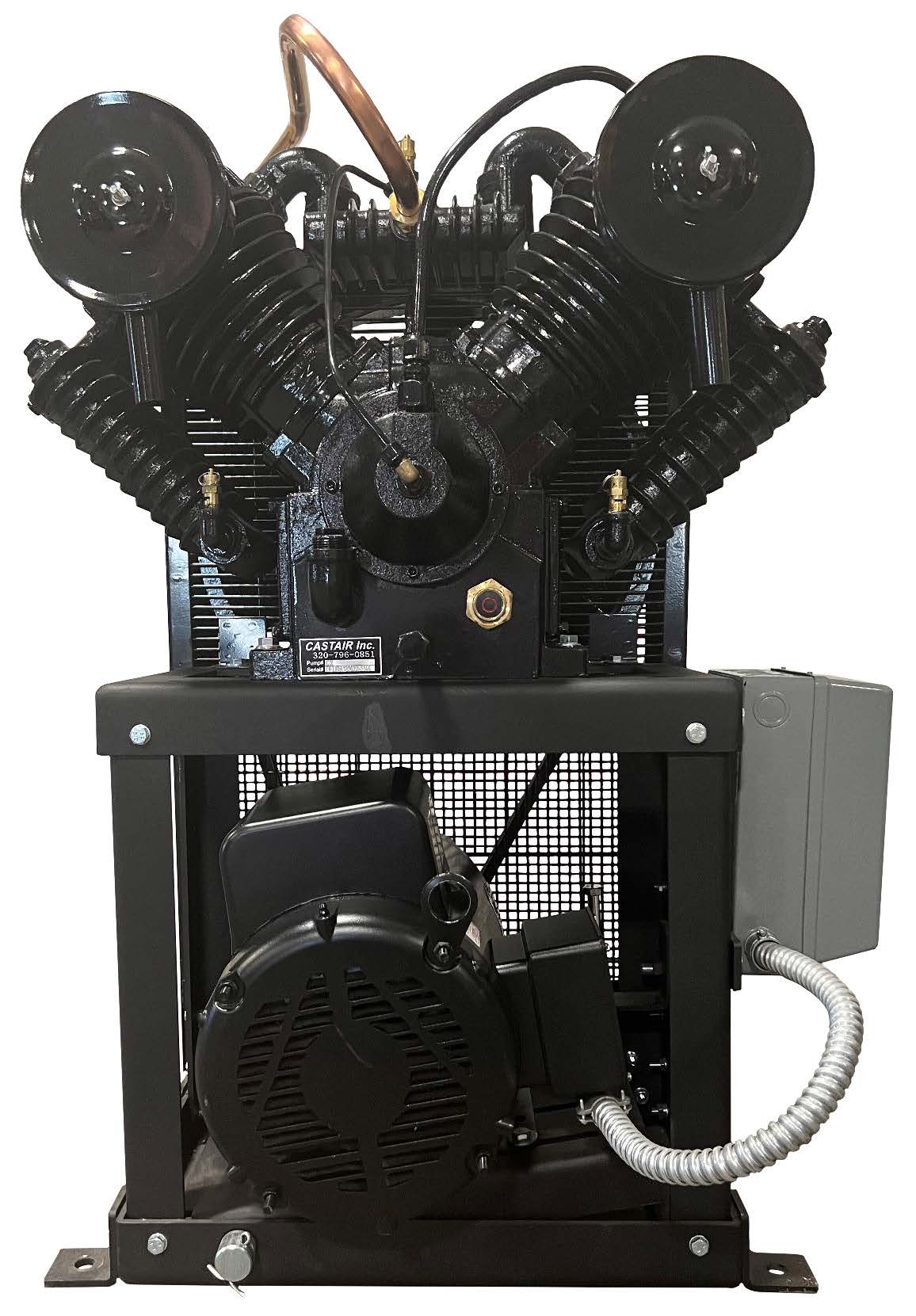

The Castair I103CUC2-S is a 10-horsepower, 3-phase industrial air compressor in the "cube" configuration — a pump-and-motor assembly on a rigid steel frame without a tank, designed to mount on an existing tank or in a service vehicle. This is the right product when you already have a tank that is in serviceable condition but need to replace the pump and motor assembly, or when you are building a custom installation in a service truck, utility bay, or remote location where a self-contained unit does not fit. The included magnetic motor starter (the -S suffix) means this unit is ready to wire and run once you have it bolted to your tank.
Who Needs the Cube Configuration
The cube format solves specific problems that a standard compressor does not. If your existing tank is sound but the pump has failed, a cube replacement is substantially less expensive than replacing the entire unit — you keep the tank, replace the working parts. If you are building out a service truck and need to mount a 10HP 3-phase compressor in a custom compartment where the tank is remote or under the truck body, the cube format is the only practical option. For shops with very limited floor space who have a remote elevated tank, the cube mounts on the wall or frame near the tank with a much smaller footprint than any self-contained unit.
If you need a complete self-contained compressor with tank, look at the I1038VC2-S (80-gallon vertical) or I1038HC2-S (80-gallon horizontal) instead.
Pump Features
- All cast iron construction — cylinders, heads, crankcase. Same Castair industrial pump as used in the self-contained industrial line.
- 758 RPM operating speed — slow-speed design for lower operating temperatures and longer service life.
- Tapered roller bearings at both ends of the crankshaft.
- Steel connecting rods with automotive-type insert bearings — at crankshaft and wrist pin. Replaceable for long-term serviceability.
- Disc and spring valves — field-serviceable without major disassembly.
- 4-ring pistons — better sealing and less oil carry-over than 2-ring pistons.
- Centrifugal unloader — loadless motor starts.
Frame, Motor, and Starter
- Rigid steel frame construction — built for mounting in service vehicles or on existing tanks with just a few bolts.
- Self-tensioning electric motor base — maintains proper belt tension automatically as the belt stretches over time. This eliminates the manual belt tension adjustment that is commonly skipped and leads to premature belt and bearing wear.
- 1725 RPM industrial motor — 15% service factor minimum.
- Magnetic motor starter included — factory mounted and wired. Provides overload protection for the 3-phase motor.
- Standard pump outlet: 3/4 inch NPT female threads — for discharge connection to your existing tank or piping.
- Dimensions: 31x24x41 inches.
- Weight: 570 lbs.
Installation Items You May Need
- Vibration pads — available separately to isolate the unit from the mounting surface.
- Remote tanks — Castair offers matching ASME tanks in various sizes if you need to pair a new tank with this cube unit.
- Check valve — required between the pump outlet and the tank to prevent backflow. Order separately if your existing installation does not already have one.
- JIC to NPT fittings — for pump discharge connection if your existing piping uses JIC fittings.
- Copper or stainless-steel flex line — for pump discharge tube to tank connection. Available from Castair separately.
- Pressure switch — required for operation. The cube unit does not include a pressure switch. If you are replacing an existing pump/motor assembly, your existing pressure switch may transfer if it is properly rated.
Cube Lineup — 3-Phase Models
- I53CUC1-S — 5HP, 3-phase, 767 RPM, 17.5 CFM @175 PSI, 27x22x41 in., 405 lbs, with starter.
- I53CUC2-S — 5HP, 3-phase, 420 RPM, 17.5 CFM @175 PSI, 31x24x41 in., 505 lbs, with starter.
- I73CUC1-S — 7.5HP, 3-phase, 895 RPM, 24.8 CFM @175 PSI, 27x22x41 in., 440 lbs, with starter.
- I73CUC2-S — 7.5HP, 3-phase, 585 RPM, 28.1 CFM @175 PSI, 31x24x41 in., 540 lbs, with starter.
- I103CUC2-S (this unit) — 10HP, 3-phase, 758 RPM, 35.0 CFM @175 PSI, 31x24x41 in., 570 lbs, with starter.
Technical Specifications
- Model Number: I103CUC2-S
- Horsepower: 10 HP
- Phase: 3-phase
- Tank: None (cube/pump-motor assembly only)
- Pump RPM: 758
- CFM @ 0 PSI: 45.0
- CFM @ 175 PSI: 35.0
- Max Pressure: 175 PSI
- Pump Outlet: 3/4 inch NPT female
- Dimensions (LxWxH): 31 x 24 x 41 inches
- Weight: 570 lbs
- Motor Speed: 1725 RPM
- Motor Service Factor: 15% minimum
- Motor Base: Self-tensioning
- Magnetic Starter: Included (factory mounted)
- Pump Configuration: C2
