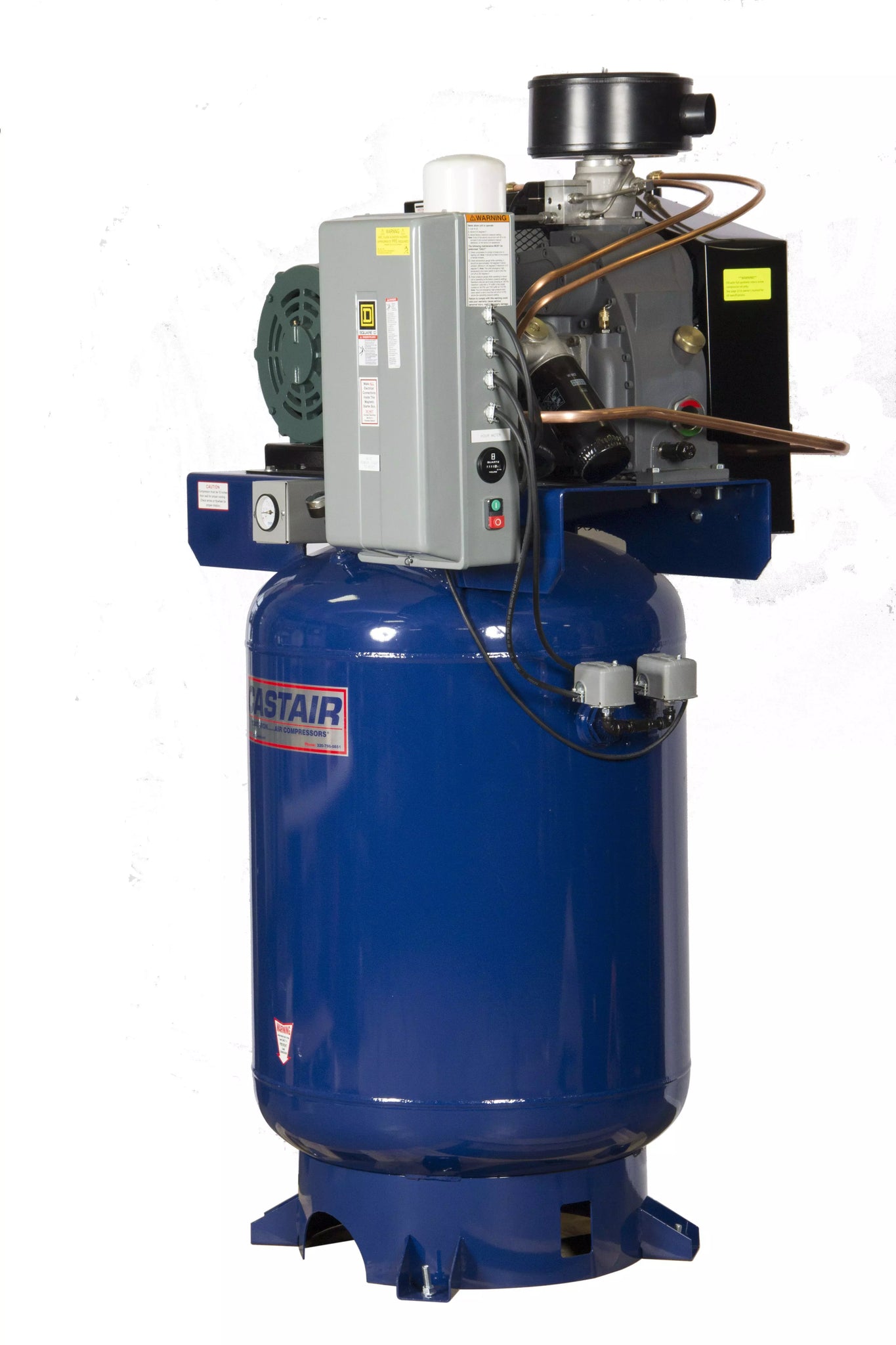

The Cast Air R10112VP75 is a 10 HP single-phase rotary screw air compressor with a 120-gallon vertical tank, rated at 40 CFM at 100 PSI. It is built for commercial shops, service garages, and fleet facilities that run on single-phase 230V power and need a continuous-duty air supply without the maintenance overhead of a piston compressor. The vertical tank orientation saves floor space while delivering the same large receiver volume as the horizontal configuration — the right trade-off for shops where square footage is at a premium but overhead clearance is available.
Key Features
- Rotary Screw Compressor Design: Oil-flooded rotary screw technology runs continuously without the heat buildup and pulsation of reciprocating piston compressors. Delivers steady air at consistent pressure across a full shift.
- Single-Phase Power: Operates on standard 230V single-phase electrical service. Shops without three-phase infrastructure can install this unit without electrical system upgrades or transformer costs.
- 40 CFM at 100 PSI: Rated free air delivery at 100 PSI working pressure. Covers the demand requirements of most general shop tools, lifts, and spray equipment running simultaneously.
- 120-Gallon Vertical Tank: Large receiver buffers demand peaks and reduces cycling frequency. The vertical orientation minimizes floor footprint while preserving full storage volume.
- Vertical Footprint Advantage: Uses less floor space than the horizontal 120-gallon configuration (R10112HP75), making it practical in tighter compressor rooms and utility areas with available ceiling height.
- Continuous Duty Rated: Rotary screw design is built for continuous operation across a full production day — not the 50-75% duty cycles typical of piston units at similar horsepower.
Technical Specifications
- SKU: R10112VP75
- Motor: 10 HP
- Phases: 1-phase
- Free Air Delivery: 40 CFM
- Rated Pressure: 100 PSI
- Tank Capacity: 120 gallons
- Tank Orientation: Vertical
- Compressor Type: Rotary screw (oil-flooded)
Note: Full manufacturer specification sheets were not available at time of writing. Specifications listed here are confirmed from the product name and SKU. Contact us at 866-217-0063 for complete datasheet details before purchasing.
What This Compressor Handles
40 CFM at 100 PSI covers a wide range of production shop tasks:
- Pneumatic lifts and vehicle hoists — cycling multiple lifts on the same compressed air supply
- Impact wrenches and air-driven hand tools — sustained operation without pressure recovery delays between technicians
- Spray painting and HVLP finishing — consistent pressure delivery for quality finish work
- Tire mounting, inflation, and bead seating — high-burst tasks in tire shops and fleet service bays
- Multiple air drops — the 120-gallon receiver supports several technicians drawing air simultaneously without starving individual drops
- Pneumatic shop equipment — press brakes, door openers, clamps, and other facility equipment on the same supply line
Horizontal vs. Vertical Tank — Choosing the Right Layout
Both the R10112VP75 (vertical) and R10112HP75 (horizontal) deliver the same 10 HP / 40 CFM / 120-gallon capacity. The orientation decision comes down to your space:
- Vertical tank (this unit) — smaller floor footprint, taller profile. Best when you have limited floor space but available ceiling clearance. Slightly higher center of gravity, so placement stability matters more.
- Horizontal tank (R10112HP75) — more floor area consumed, lower profile. Better under low ceilings, easier to roll through doorways, more stable in high-traffic areas. The horizontal unit is also rated to 135 PSI vs. 100 PSI on this vertical model.
- Pressure difference matters: If your tools or application require pressure consistently above 100 PSI, the horizontal R10112HP75 (rated to 135 PSI) is the correct choice. For standard 90-100 PSI shop applications, the vertical unit covers it.
80-Gallon vs. 120-Gallon — When the Extra Tank Volume Pays Off
- 120-gallon tanks (this unit) buffer larger demand spikes and reduce cycling frequency — the right call for multi-technician shops, spray booths, or any environment where air demand is sustained rather than intermittent.
- 80-gallon units (R1018VP75 at $10,647.82) work well for single-technician or lighter-use shops where the smaller footprint is more important than extended buffer capacity. The compressor cycles more frequently, but the CFM output is identical.
Pricing and Availability
The Cast Air R10112VP75 is priced at $12,120.72. Call for current availability and freight delivery coordination to your location.
