Castair 1" Inlet 30 CFM 6.75"O.D.x4.5"O.A.Ht. Complete Air Filter Assembly and Element

Castair S-16D-100 Complete Air Filter Assembly — 1” Inlet, 30 CFM, Silencer Type

The Castair S-16D-100 is the factory intake air filter assembly for cast iron compressor pumps with a 1” NPT inlet, rated at 30 CFM. It is a silencer-type unit that handles both intake filtration and noise attenuation. The 16D filter element is pre-installed. Body dimensions are 6.75” outer diameter and 4.5” overall height — the same housing used across the S-16D series, with a 1” NPT inlet thread for the larger Castair cast iron pumps in 7.5–10 HP configurations.

Per Castair's published pump cross-reference, the S-16D-100 is specified for their VA80, C1, C2, and C3 cast iron pump models. These are the mid-range pumps in Castair's industrial and commercial lineup. If you are replacing a worn filter on any of these pump models, or on any comparable 1” NPT inlet pump displacing up to 30 CFM, this is the correct part.

What the S-16D-100 Does

\n
• Filtration at 30 CFM: Removes airborne particulates before they reach the compression chamber. Correctly sized for the full displacement of 7.5–10 HP cast iron pumps without creating inlet restriction.
\n
• Silencer-type noise attenuation: The silencer body reduces intake valve noise. On slow-RPM Castair pumps, this makes a measurable difference in ambient shop noise.
\n
• Complete assembly: Ships with the 16D element pre-installed. Thread onto the 1” NPT pump inlet and it is operational.
\n
• Largest filter in the S-16D series: The next step up — the S-20DP-100 — has a taller body and handles 60 CFM on the same 1” NPT thread size. If you need more than 30 CFM at 1” NPT, use the S-20DP-100.
\n

Technical Specifications

\n
• Part Number: S-16D-100
\n
• Manufacturer: Castair, Inc. (Spicer, MN)
\n
• Inlet Connection: 1” NPT
\n
• Outer Diameter: 6.75”
\n
• Overall Height: 4.5”
\n
• Flow Rating: 30 CFM
\n
• Type: Silencer-type complete assembly with element
\n
• Replacement Element: 16D or 16DP (ID 3”, OD 4-3/8”, Height 2-1/8”)
\n
• Compatible Pumps: VA80, C1, C2, C3 (per Castair cross-reference)
\n

Compatible Applications

\n
• Castair VA80, C1, C2, and C3 cast iron pumps with 1” NPT inlet
\n
• Castair industrial series compressors: 7.5–10 HP (I7xx and I10xx series)
\n
• Any reciprocating compressor pump with a 1” NPT inlet displacing up to 30 CFM at operating pressure
\n

Replacement Element: 16D / 16DP

\n
• Standard Element: 16D — Inner Diameter 3”, Outer Diameter 4-3/8”, Height 2-1/8”
\n
• Alternative: 16DP — same dimensions with foam pre-filter layer
\n
• Per Castair's published element cross-reference, both the 16D and 16DP fit the S-16D-100 body
\n

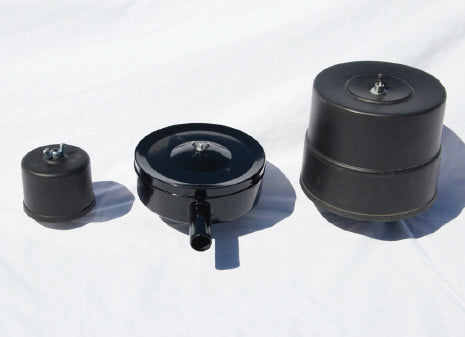

Available Configurations — Castair Air Filter Lineup

\n
• S-16D-050 — 1/2” inlet, 6.75” OD x 4.5” height, 20 CFM
\n
• S-16D-075 — 3/4” inlet, 6.75” OD x 4.5” height, 20 CFM
\n
• S-16D-100 — 1” inlet, 6.75” OD x 4.5” height, 30 CFM (this unit — $50.82)
\n
• S-20DP-100 — 1” inlet, 6.75” OD x 7.0” height, 60 CFM (taller body, higher CFM)
\n
• S-20DP-125 — 1-1/4” inlet, 6.75” OD x 7.0” height, 60 CFM
\n
• S-20DP-150 — 1-1/2” inlet, 6.75” OD x 7.0” height, 60 CFM
\n
• S-32DP-200 — 2” inlet, 7.5” OD x 7.5” height, 195 CFM
\n

When Does a Shop Need the S-16D-100 vs. Stepping Up or Down?

\n
• Order the S-16D-100 if your pump has a 1” NPT inlet and displaces up to 30 CFM at operating pressure. Correct for 7.5–10 HP Castair cast iron pumps in the VA80/C1/C2/C3 family.
\n
• Step down to S-16D-075 if your pump inlet is 3/4” NPT. The S-16D-100 will not thread onto a 3/4” port.
\n
• Step up to S-20DP-100 if your pump has a 1” NPT inlet but displaces more than 30 CFM. Both take a 1” NPT inlet, but the 20DP body handles 60 CFM in a taller housing.
\n
• If unsure whether your pump needs S-16D-100 or S-20DP-100: both use a 1” NPT thread. The deciding factor is CFM displacement, not inlet thread size.
\n

What’s in the Box

\n
• 1x Castair S-16D-100 complete air filter assembly (silencer type), 1” NPT inlet
\n
• 1x 16D filter element (pre-installed)
