The Castair G151816B is a 1/8-inch NPT back-mount pressure gauge with a 1.5-inch dial face, reading 0 to 160 PSI. Priced at $11.01, this is a straightforward replacement gauge for compressor tanks, regulators, and air system panels where a compact, back-mount gauge is the correct form factor.
Back-mount means the NPT fitting exits from the back of the gauge case — so the gauge mounts flush against a panel or tank wall with the dial facing out toward the operator. This is the correct configuration for panel-mounted installations and compressor tank gauge ports that are recessed or surface-mounted. If your gauge port faces toward the operator rather than being recessed in a panel, you want a bottom-mount gauge (G151816U) instead.
Key Features
- 1/8 inch NPT connection — standard small-port gauge fitting used on regulators, manifolds, and small compressor ports
- Back-mount configuration — connection exits from the rear of the gauge for panel or flush-mount installations
- 1.5-inch dial — compact size for tight panel spaces or small compressor housings
- 0-160 PSI range — appropriate for standard shop compressed air systems operating at 90-150 PSI
- Genuine Cast Air replacement component — correct specification for Cast Air compressor and regulator applications
Technical Specifications
- Part Number: G151816B
- Connection: 1/8 inch NPT
- Mount: Back mount
- Dial Size: 1.5 inch
- Range: 0-160 PSI
Back Mount vs. Bottom Mount — Which Do You Need?

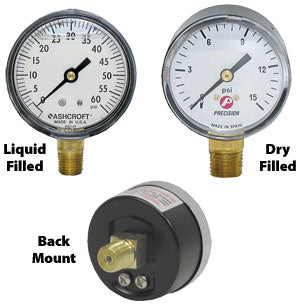

Back mount (this gauge, G151816B): the port threads into the back of the gauge housing. The gauge mounts against a flat surface — panel, tank face, bracket — with only the dial visible from the front. Bottom mount (G151816U): the port exits from the bottom of the gauge. Used where the gauge stands vertically off a horizontal pipe or fitting. Look at your existing gauge or gauge port orientation before ordering — getting this wrong means the gauge does not fit the mounting position.
Applications
- Replacement gauge on Cast Air compressor tanks and receiver panels
- Regulator and manifold gauge port replacement on shop air systems
- Compressor control panel gauge replacement
- Any application requiring a 1/8 inch NPT, 0-160 PSI, back-mount gauge
