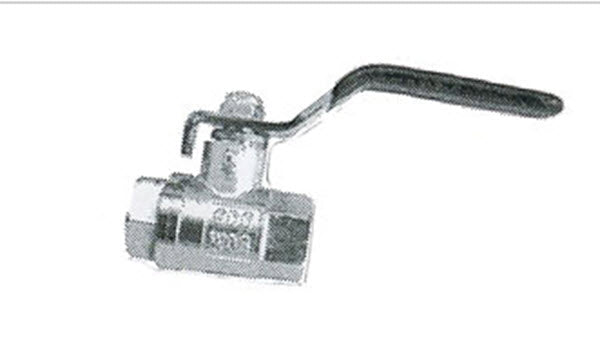

The Castair Full Flow Ball Valve BV25 is a 1/4" NPT female threaded ball valve for compressed air systems. At $11.86, it is the smallest and most affordable valve in the Castair BV series, sized for 1/4" NPT lines used in pilot connections, drain valve outlets, instrumentation taps, and small auxiliary air lines on Castair compressor installations.
Where 1/4" Valves Are Used
A 1/4" NPT shutoff valve shows up in several places on a reciprocating compressor system. Pilot valve connections are typically 1/4" NPT. Pressure gauge taps, condensate drain lines, and auxiliary ports on aftercoolers and filters often use 1/4" NPT connections. The BV25 gives you a positive, positive-shutoff valve at any of these points — a 90-degree turn of the handle takes the line from full flow to fully isolated.
The full-flow design means the bore through the ball matches the 1/4" pipe ID. At this pipe size, the difference between full-flow and reduced-bore is less significant than at larger sizes, but the full-flow valve still offers better flow characteristics and easier maintenance access when the valve body needs to be serviced.
Technical Specifications
- SKU: BV25
- Connection Size: 1/4" NPT Female (both ends)
- Valve Type: Full Flow Ball Valve
- Price: $11.86
- Manufacturer: Cast Air (Castair)
- Category: Accessories
Key Features
- 1/4" NPT Female Connections: Fits standard 1/4" NPT pilot, drain, gauge, and auxiliary ports on compressed air equipment
- Full Flow Design: Full-port ball bore — matches pipe ID for minimum flow restriction
- Positive Shutoff: Quarter-turn handle — fully open or fully closed with no in-between leakage positions
- Compact Size: Small enough to fit in tight plumbing locations common on compressor manifolds and aftercooler connections
Applications
- Pilot valve isolation on Castair compressor unloader systems (1/4" NPT pilot ports)
- Condensate drain valve on aftercoolers and moisture separators
- Pressure gauge isolation valves — shut off the gauge for replacement without taking the system down
- Auxiliary air line shutoff for 1/4" NPT supply connections to instrumentation or low-demand tools
BV Series Complete Range
Castair BV full-flow ball valves cover 1/4" through 1-1/2" NPT: BV25 (1/4", $11.86), BV100 (1", $40.66), BV125 (1-1/4", $57.60), BV150 (1-1/2", $81.31). Match the valve size to your line or port size. Call 866-217-0063 if you need help selecting the right size for your application.
