Castair 1/2"x3/4" In-Tank Check Valve Compression Tube Fitting Inlet / NPT Outlet CTD1234

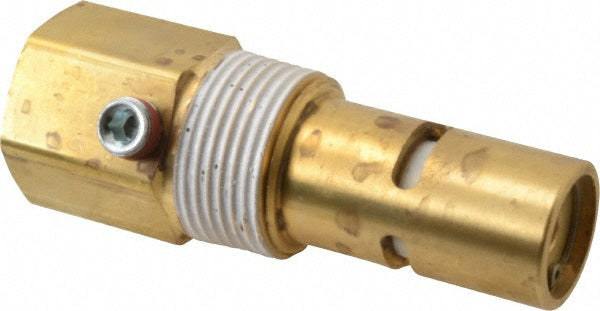

The Castair CTD1234 is an asymmetric in-tank check valve with 1/2" compression tube fitting inlet and 3/4" NPT male outlet. At $29.65, it's used when 1/2" copper discharge tubing runs from the compressor head to the check valve, which then threads into a 3/4" NPT tank bung. One valve body handles both the compression tube connection and the size step-up from 1/2" tubing to a 3/4" tank port. Rated 500 PSIG and 400 degrees F with a 1/8" unloader port.
Technical Specifications
- Part Number: CTD1234
- Inlet Connection: 1/2" Compression tube fitting
- Outlet Connection: 3/4" NPT Male
- Pressure Rating: 500 PSIG
- Temperature Rating: 400 degrees F
- Unloader Port: 1/8" side port
- Price: $29.65
- Manufacturer: Castair (Spicer, Minnesota)
When You Need CTD1234
- 1/2" copper discharge tubing exits the compressor head
- The tank or manifold connection is 3/4" NPT female
- One valve body handles both the tube-to-thread transition and the size step-up
CTD Series Full Reference
- CTD3838 — 3/8" comp x 3/8" NPT, $20.33
- CTD3812 — 3/8" comp x 1/2" NPT, $20.33
- CTD1212 — 1/2" comp x 1/2" NPT, $21.18
- CTD1238 — 1/2" comp x 3/8" comp, $25.41
- CTD1234 — 1/2" comp x 3/4" NPT (this listing), $29.65
- CTD3434 — 3/4" comp x 3/4" NPT, $29.65
- CTD3410 — 3/4" comp x 1" NPT, $46.59
