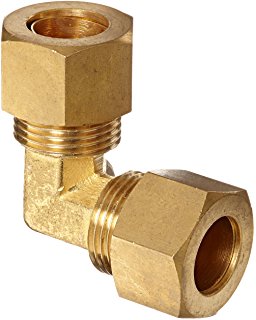

Castair CE1212 Compression Elbow -- 1/2-inch x 1/2-inch
The Castair CE1212 is a 1/2-inch x 1/2-inch compression elbow used in air compressor discharge tube assemblies. It is part of Castair's discharge tube hardware lineup, designed for connecting copper discharge tubes between the compressor pump outlet and the tank inlet while accommodating a 90-degree direction change. Castair specifies copper discharge tubing on their compressors because copper handles the temperature and pressure of the discharge circuit reliably, and compression fittings allow field service without soldering or flare tools.
The CE1212 fits the standard 1/2-inch copper discharge tube (CT50) used on single-stage and two-stage Castair compressors in the commercial and garage series. The matched straight fitting is the CA1212 compression adaptor -- use the adaptor for in-line connections and the CE1212 elbow when the tube needs to change direction 90 degrees.
Key Features
- Connection Type: Compression fitting -- no soldering or flare tools required
- Size: 1/2-inch x 1/2-inch -- inlet and outlet both 1/2-inch compression
- Application: Air compressor discharge tube routing -- 90-degree direction change on 1/2-inch copper tube runs
- Matched Straight Fitting: CA1212 compression adaptor
Discharge Tube Hardware -- Castair Lineup
- CA1212: Compression adaptor 1/2-inch x 1/2-inch -- straight in-line connection
- CE1212: Compression elbow 1/2-inch x 1/2-inch -- 90-degree turn (this part)
- CA3434: Compression adaptor 3/4-inch x 3/4-inch -- straight, larger tube size
- CE3434: Compression elbow 3/4-inch x 3/4-inch -- 90-degree, larger tube size
- DT12: 1/2-inch discharge tube with fittings -- complete assembly
- CNS12: 1/2-inch compression nut and sleeve -- replacement hardware
Installation Notes
Make sure tube ends are clean, square-cut, and free of burrs before inserting into the compression fitting. Overtightening a compression elbow can deform the ferrule -- hand-tight plus approximately 1-1/4 turns with a wrench is the standard starting point for 1/2-inch compression hardware. Check for leaks before putting the compressor back into service.
Technical Specifications
- Part Number: CE1212
- Type: Compression elbow
- Size: 1/2-inch x 1/2-inch
- Application: Air compressor discharge tube -- 90-degree direction change
- Compatible Tube: 1/2-inch copper tubing (CT50)
- Matched Straight Fitting: CA1212
- Manufacturer: Castair Inc., Spicer, Minnesota
