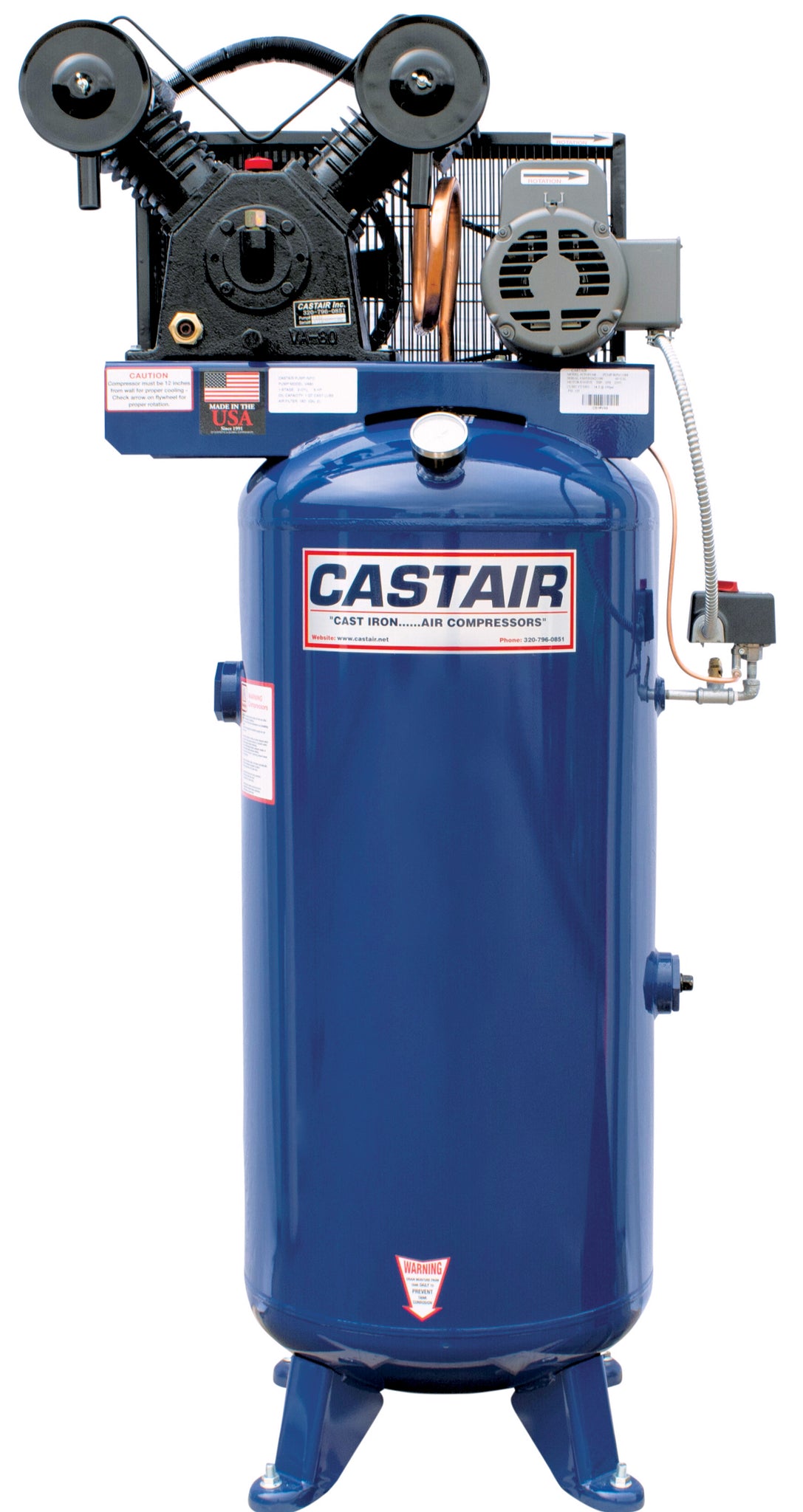

Castair C516VA8 — 5HP Commercial Air Compressor, 60-Gallon Vertical Tank
The C516VA8 is Castair's 5HP single-stage commercial air compressor on a 60-gallon vertical ASME tank. It runs at 1,088 RPM, delivers 23.7 CFM @ 0 PSI and 18.3 CFM @ 100 PSI, and operates on 230V/22A single-phase power. No magnetic starter required. It ships at 335 lbs in a footprint of 34 x 20 inches at the base, 68 inches tall. Price per our records: $1,725.50. This is the same unit as the C516VA8-S without the factory-mounted starter.
Confirmed Specifications — From Castair's Published Data
- Model: C516VA8
- Horsepower: 5HP
- Compression Stages: Single-stage
- Tank: 60-gallon vertical, ASME-rated
- Pump RPM: 1,088
- CFM @ 0 PSI: 23.7
- CFM @ 100 PSI: 18.3
- Dimensions (LxWxH): 34 x 20 x 68 inches
- Voltage/Amps: 230V / 22A (single-phase)
- Shipped Weight: 335 lbs
- Shutoff Pressure: 125 PSI
- Magnetic Starter Required: No
Who This Is For
The C516VA8 is the most popular tank size in Castair's 5HP commercial lineup — 60 gallons provides a practical balance between reserve volume and physical size. The vertical orientation keeps the floor footprint to 34 x 20 inches (compare to the 30-gallon horizontal C513HA8 which is 33 x 18 inches at the base — nearly the same footprint, but the vertical 60-gallon gives you twice the reserve). For a 2-3 bay automotive shop, service garage, or body shop running single-phase power, this is the right starting point before moving up to the industrial series.
Cast Iron Commercial Pump
- Oil-lubricated cast iron: Not oil-free — built for sustained daily use
- 1,088 RPM pump speed: Slow operation means cool temperatures and long pump life
- Single-stage: Factory-set to 125 PSI shutoff — right for the vast majority of air tools
- V-twin cylinders: Smooth running, 360-degree cooling
- Paper element air filter/silencer: Clean intake, quiet operation
- Sight glass: Oil level visible without disassembly
- Ball bearing main bearings: Superior crankshaft support versus sleeve bearings
- Bleeder pressure switch: Motor starts unloaded every time
60-Gallon Vertical ASME Tank
- Compact floor footprint: 34 x 20 inch base
- 68-inch height: Verify ceiling clearance at installation site
- Powder-coated ASME-rated pressure vessel: Code-compliant for commercial use
- 4-leg base: Elevated, stable mounting
- Copper discharge tube: Durable, better heat dissipation
- Rigid metal belt guard: OSHA-compliant belt drive protection
Available 5HP Configurations
| Model | Tank | Orientation | Starter | Dimensions | Weight |
|---|---|---|---|---|---|
| C513HA8 | 30-Gal | Horizontal | No | 33x18x38" | 295 lbs |
| C516VA8 | 60-Gal | Vertical | No | 34x20x68" | 335 lbs |
| C516VA8-S | 60-Gal | Vertical | Factory-mounted | 34x20x68" | ~335 lbs |
| C518VA8 | 80-Gal | Vertical | No | 32x24x66" | 435 lbs |
| C518HA8 | 80-Gal | Horizontal | No | 64x20x41" | 435 lbs |
When Does a Shop Need This vs. Stepping Up or Down?
The C516VA8 is the sweet spot for a shop with moderate air demand that wants a compact vertical footprint. The 60-gallon tank holds significantly more reserve than a 30-gallon unit — your pump cycles less and the system recovers faster between tool uses.
Step down to C513HA8 only if horizontal orientation is required and 30-gallon reserve is sufficient for your use pattern.
Step up to C518VA8 or C518VC1 (80-gallon) if your air demand is higher — more simultaneous tools, longer run times, or a busier shop schedule. The two-stage C518VC1 also makes sense if you need 175 PSI working pressure.
Factory Options
- Air Operated Auto Drain (#ADVSM): Automatic condensate drain
- Electronic Auto Drain (#SDV03M): Timer-controlled drain
- Belt Guard Aftercooler (#BGAC1M): 35 CFM — reduces moisture carry-over
- Vibration Pads (#VP1004): 4x4x1" rubber isolation pads (set of 4)
- Right From the Start Kit (#RFS001): Oil, pads, ball valve, flex hose, filter
What's in the Box
- Assembled compressor (pump, motor, 60-gallon vertical tank, belt drive)
- Rigid metal belt guard
- Copper discharge and unloader tube
- ASME safety valve and bleeder pressure switch
- Oil sight glass and paper element air filter/silencer
- Not included: Compressor oil, vibration pads, flex hose, magnetic starter
